Power Terminals – Power Supply on the Circuit Board

Power Supply Connections Based on Press-Fit Technology ept Power Terminals are specially designed to provide power supply connections to circuit boards. The cable is connected using a cable lug that is screwed in place or via a tab terminal (Faston).

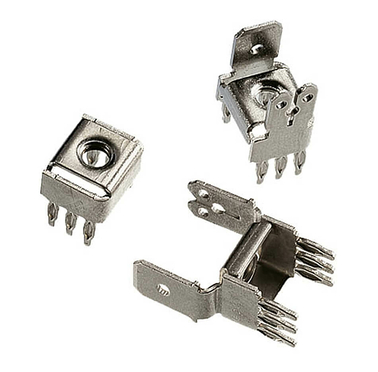

PowerTerminals 5 08x10 16 Gewinde M4 Foto

Features

  • Easy connection of power cables
  • Individual variants such as angled or offset connectors are possible
  • Easy processing via press-in
  • Accessories: M4 or M5 screws

Applications

  • Power supply by screw connection or Faston contact
  • Backplane systems for power supply
Filter
Pitch 5.08 x 10.16 mm

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32004

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32004 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32006

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32006 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32044

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32044 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32046

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32046 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32244

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32244 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32246

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-32246 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33008

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33008 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33009

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33009 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33048

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33048 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33049

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33049 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33248

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33248 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33249

PowerTerminals 5 08x10 16 Gewinde M4 Foto
thread  M4, termination length 5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 10.16 mm Part No. 911-33249 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 10.16 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Pitch 5.08 x 7.62 mm

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22015

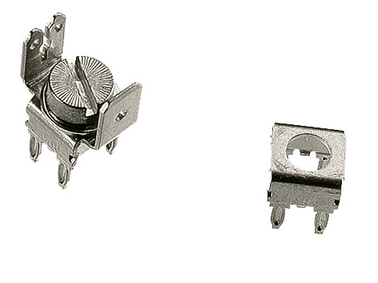

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M4, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22015 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22020

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M5, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22020 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM5
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22715/1

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M4, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22715/1 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22720/1

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M5, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-22720/1 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM5
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60045

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M4, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60045 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60050

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M5, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60050 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM5
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60645/1

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M4, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60645/1 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM4
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60650/1

PowerTerminals 5 08x7 62 Gewinde M5 Foto
thread  M5, termination length 4.5 mm
Press-fit
Power
Rugged
Power Terminals pitch 5.08 x 7.62 mm Part No. 910-60650/1 - Technical data

Basics

Termination TechnologyPress-fit
Termination Length4.5 mm
Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch5.08 x 7.62 mm

Electrical

Operational Current20° 45A, 70° 30A, 100° 25A

Processing

ThreadM5
Max. Fastening Torque1.3 Nm

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Accessories

Power Terminals Lock nut Part No. 910-20015

thread  M4
Power Terminals Lock nut Part No. 910-20015 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM4

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals Lock nut Part No. 910-20020

thread  M5
Power Terminals Lock nut Part No. 910-20020 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM5

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals Socket cap screw DIN 84, M4 Part No. 910-20145

thread  M4
Power Terminals Socket cap screw DIN 84, M4 Part No. 910-20145 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM4

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals Philips screw Part No. 910-20146

thread  M4
Power Terminals Philips screw Part No. 910-20146 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM4

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals Socket cap screw DIN 84, M5 Part No. 910-20150

thread  M5
Power Terminals Socket cap screw DIN 84, M5 Part No. 910-20150 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM5

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals Washer Part No. 910-20320

thread  M4
Power Terminals Washer Part No. 910-20320 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM4

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Power Terminals Washer Part No. 910-20330

thread  M5
Power Terminals Washer Part No. 910-20330 - Technical data

Basics

Operating Temperature Range-55°C to +125°C

Material

Contact MaterialCopper alloy

Processing

ThreadM5

Approval / Compliance

EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Vielen Dank! Wir werden Ihre Anforderungen prüfen und mit Ihnen Kontakt aufnehmen.

Bei Fragen stehen wir Ihnen jederzeit per E-Mail oder Telefon zur Verfügung.

Kein passendes Produkt gefunden - Produkt jetzt anfragen:

Felder mit * sind Pflichtfelder.

Features

Powerterminal Board
ept Power Terminals impress customers thanks to their ability to conveniently connect power cables and easy processing by press-fitting. The Power Terminals are available in individual variants with an angled or offset connection.
Powerterminal
Power Terminal

Details im Überblick

Anschluss Faston-Kontakt
Anschluss Schraube
Einpresszone Tcom press®
