Compact and sturdy PCB Connections in SMT

Board-to-board distances from 8 mm up to 20.00 mm can be achieved using One27 connectors from ept.
One27 Leiterplattenabstaende NEU 2023

Features

  • 12 to 80 contacts
  • 1.4 A current carrying capacity
  • 500 mating cycles

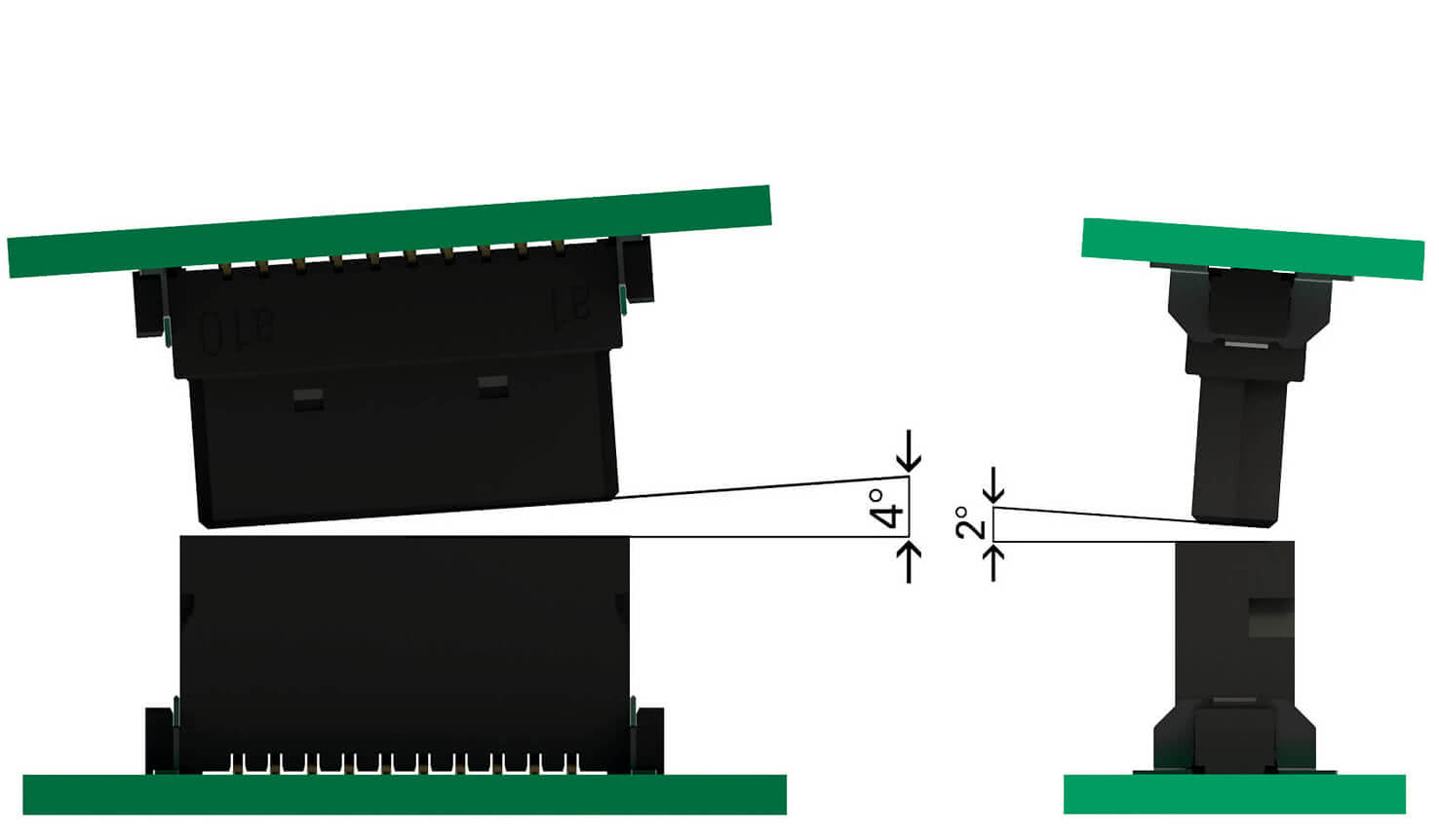

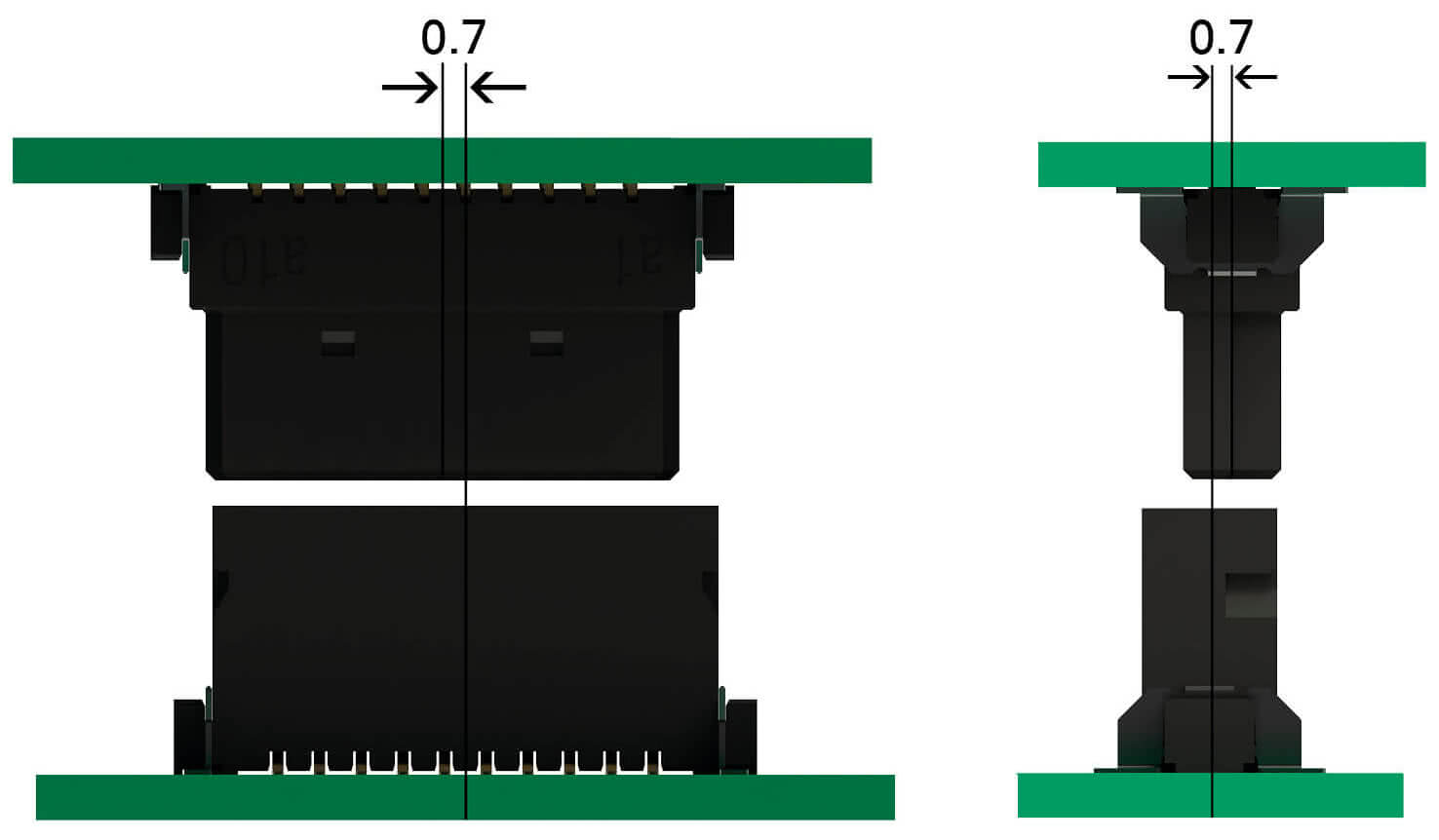

  • Highest contact reliability
  • Compatibility with other suppliers has been tested

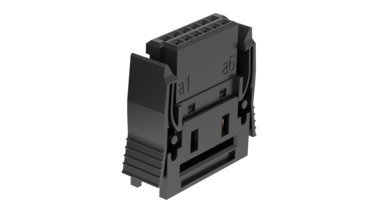

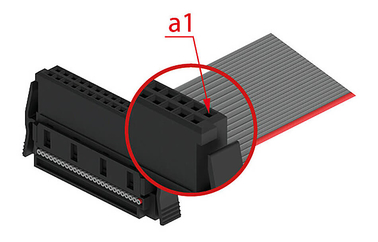

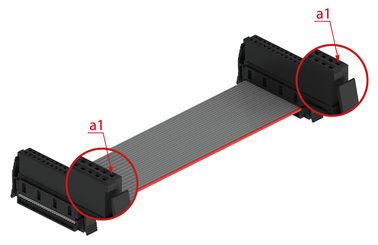

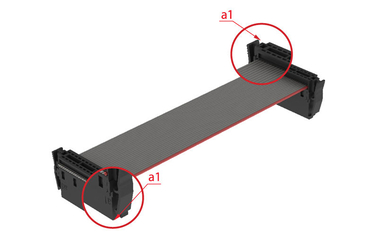

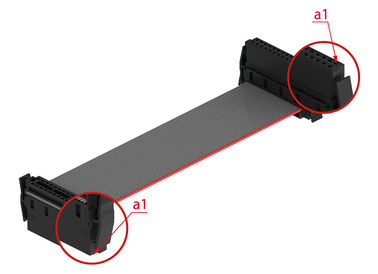

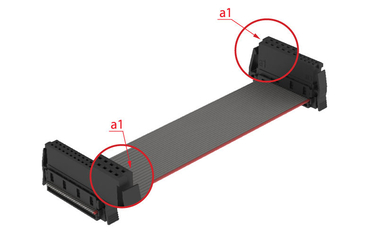

  • Female IDC available individually or assembled with cable
  • Packed in tape-and-reel

Applications

  • Board-to-board (mezzanine) distances ranging from 8 mm to 20.00 mm
  • Parallel and perpendicular connections
  • IDC connectability with ribbon cable
Filter
Female straight

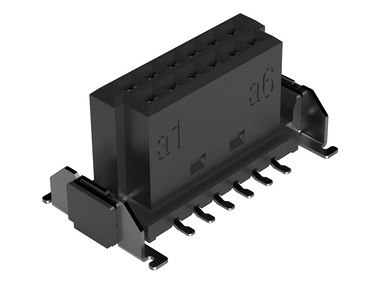

One27 Female low-profile Part No. 414-52012-51

ept One27 Federleiste gerade Low 404 52012 51
12 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

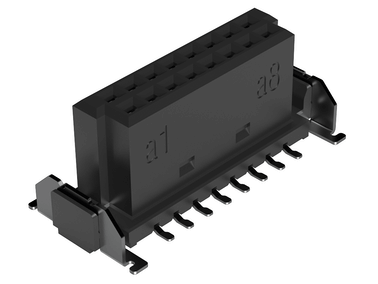

One27 Female low-profile Part No. 414-52016-51

ept One27 Federleiste gerade Low 404 52016 51
16 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

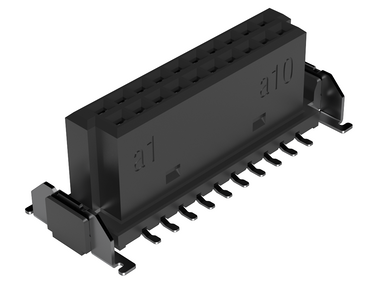

One27 Female low-profile Part No. 414-52020-51

ept One27 Federleiste gerade Low 404 52020 51
20 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance8.0 mm - 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

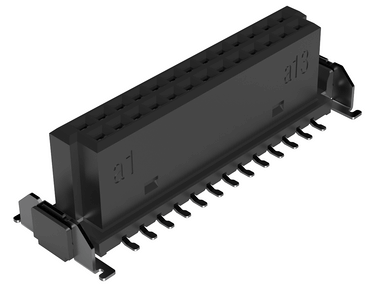

One27 Female low-profile Part No. 414-52026-51

ept One27 Federleiste gerade Low 404 52026 51
26 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

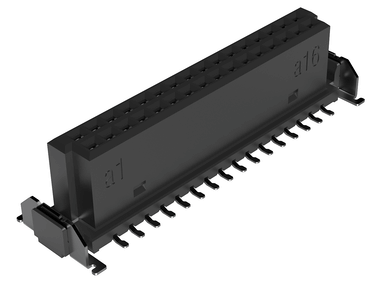

One27 Female low-profile Part No. 414-52032-51

ept One27 Federleiste gerade Low 404 52032 51
32 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance8.0 mm - 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

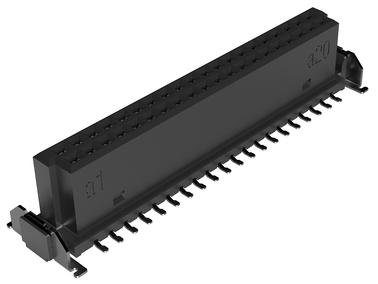

One27 Female low-profile Part No. 414-52040-51

ept One27 Federleiste gerade Low 404 52040 51
40 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance8.0 mm - 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

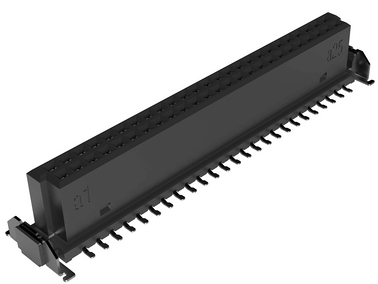

One27 Female low-profile Part No. 414-52050-51

ept One27 Federleiste gerade Low 404 52050 51
50 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

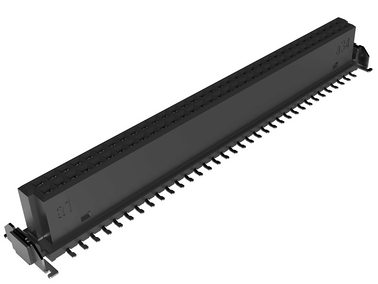

One27 Female low-profile Part No. 414-52068-51

ept One27 Federleiste gerade Low 404 52068 51
68 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance8.0 mm - 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

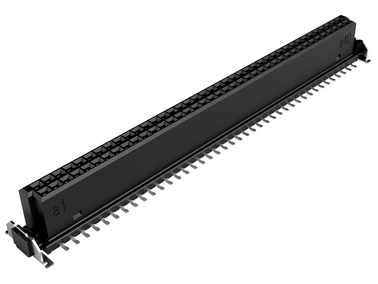

One27 Female low-profile Part No. 414-52080-51

ept One27 Federleiste gerade Low 404 52080 51
80 pins, unmated stacking height: 6.25 mm, for board-to-board distances from  8.0 to 12.6 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female low-profile Part No. 414-52080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 12.6 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

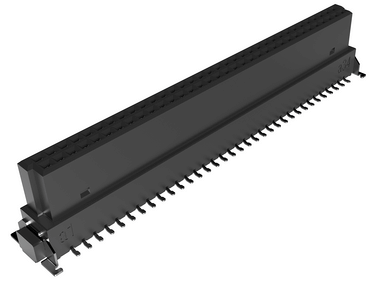

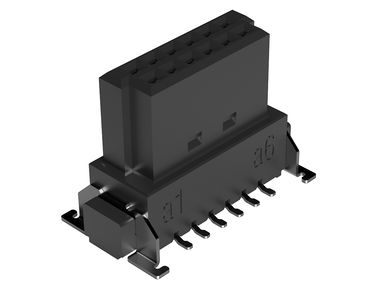

One27 female mid-profile Part No. 414-53012-51

ept One27 Federleiste gerade Mid 404 53012 51
12 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 female mid-profile Part No. 414-53016-51

ept One27 Federleiste gerade Mid 404 53016 51
16 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

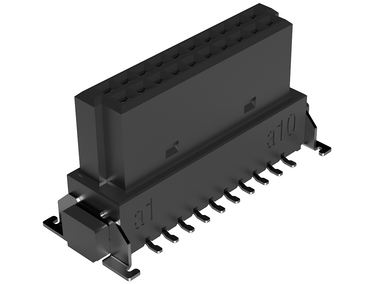

One27 female mid-profile Part No. 414-53020-51

ept One27 Federleiste gerade Mid 404 53020 51
20 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance10.8 mm to 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

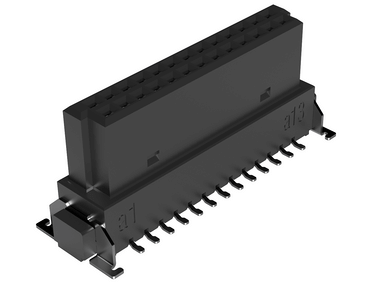

One27 female mid-profile Part No. 414-53026-51

ept One27 Federleiste gerade Mid 404 53026 51
26 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance10.8 mm - 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

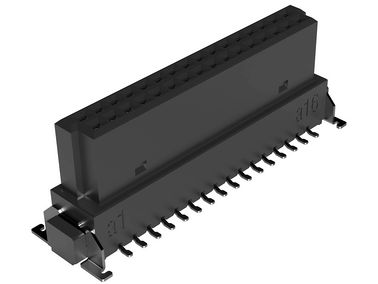

One27 female mid-profile Part No. 414-53032-51

ept One27 Federleiste gerade Mid 404 53032 51
32 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance10.8 mm - 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

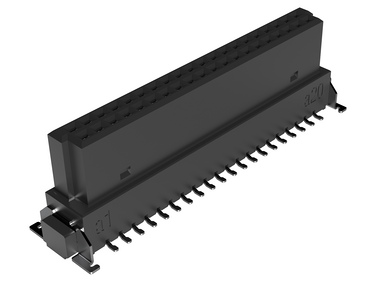

One27 female mid-profile Part No. 414-53040-51

ept One27 Federleiste gerade Mid 404 53040 51
40 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance10.8 mm - 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 female mid-profile Part No. 414-53050-51

ept One27 Federleiste gerade Mid 404 53050 51
50 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance10.8 mm - 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 female mid-profile Part No. 414-53068-51

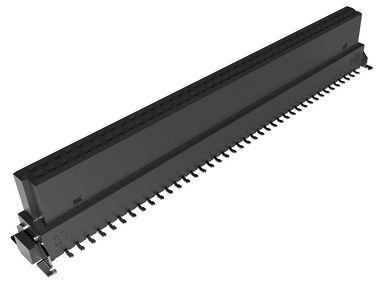

ept One27 Federleiste gerade Mid 404 53068 51
68 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance10.8 mm - 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 female mid-profile Part No. 414-53080-51

ept One27 Federleiste gerade Mid 404 53080 51
80 pins, unmated stacking height: 9.05 mm, for board-to-board distances from 10.8 to 15.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 female mid-profile Part No. 414-53080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance10.8 mm - 15.4 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54012-51

ept One27 Federleiste gerade high 404 54012 51
12 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54016-51

ept One27 Federleiste gerade high 404 54016 51
16 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54020-51

ept One27 Federleiste gerade high 404 54020 51
20 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54026-51

ept One27 Federleiste gerade high 404 54026 51
26 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54032-51

ept One27 Federleiste gerade high 404 54032 51
32 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54040-51

ept One27 Federleiste gerade high 404 54040 51
40 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54050-51

ept One27 Federleiste gerade high 404 54050 51
50 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54068-51

ept One27 Federleiste gerade high 404 54068 51
68 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female high-profile Part No. 404-54080-51

ept One27 Federleiste gerade high 404 54080 51
80 pins, unmated stacking height: 13.65 mm, for board-to-board distances from 15.4 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Female high-profile Part No. 404-54080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance15.4 to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Male straight

One27 Male low-profile Part No. 413-52012-51

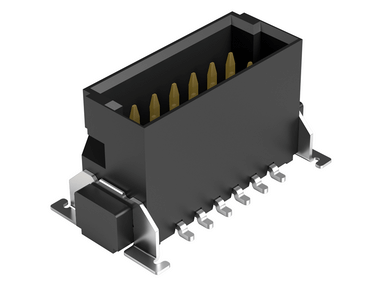

ept One27 Messerleiste gerade Low 403 52012 51
12 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male low-profile Part No. 413-52016-51

ept One27 Messerleiste gerade Low 403 52016 51
16 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

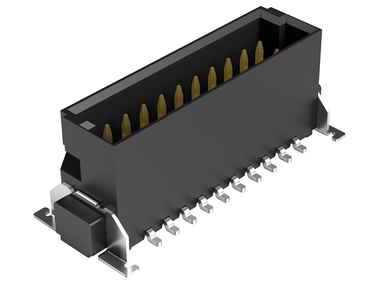

One27 Male low-profile Part No. 413-52020-51

ept One27 Messerleiste gerade Low 403 52020 51
20 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

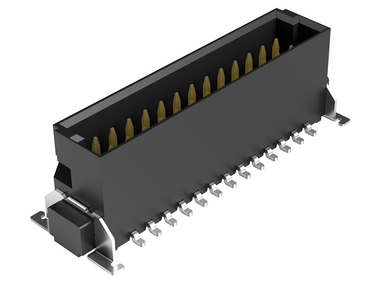

One27 Male low-profile Part No. 413-52026-51

ept One27 Messerleiste gerade Low 403 52026 51
26 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

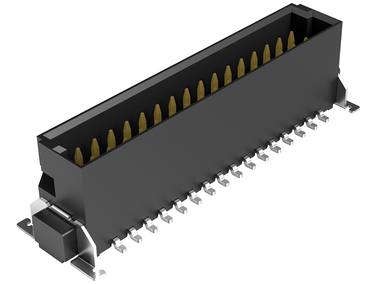

One27 Male low-profile Part No. 413-52032-51

ept One27 Messerleiste gerade Low 403 52032 51
32 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialKupferlegierung
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male low-profile Part No. 413-52040-51

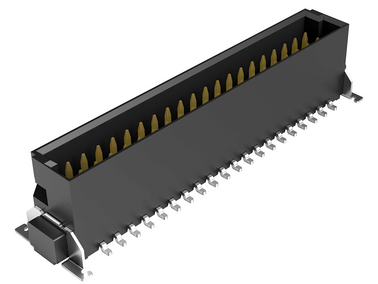

ept One27 Messerleiste gerade Low 403 52040 51
40 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

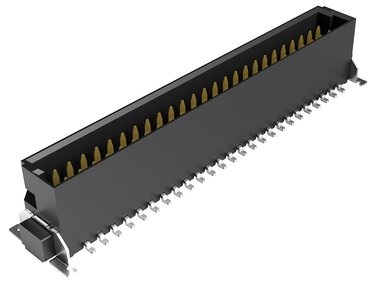

One27 Male low-profile Part No. 413-52050-51

ept One27 Messerleiste gerade Low 403 52050 51
50 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male low-profile Part No. 413-52068-51

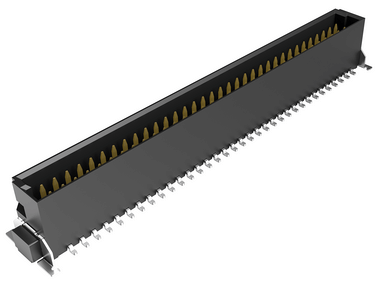

ept One27 Messerleiste gerade Low 403 52068 51
68 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

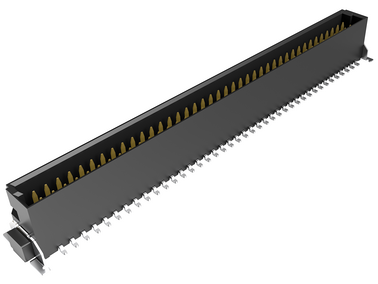

One27 Male low-profile Part No. 413-52080-51

ept One27 Messerleiste gerade Low 403 52080 51
80 pins, unmated stacking height: 1.75 mm, for board-to-board distances from 8.0 to 16.9 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male low-profile Part No. 413-52080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance8.0 mm to 16.9 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

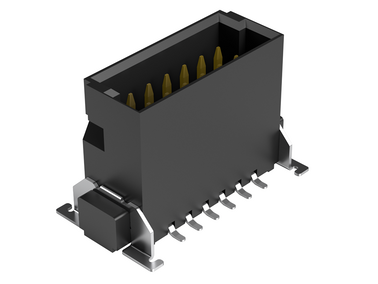

One27 Male mid-profile Part No. 413-53012-51

ept One27 Messerleiste gerade Mid 403 53012 51
12 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS complaint
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

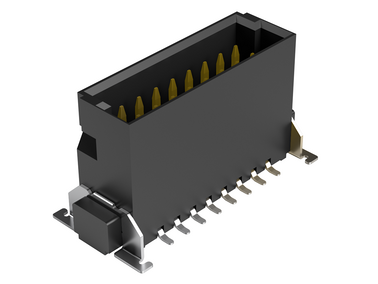

One27 Male mid-profile Part No. 413-53016-51

ept One27 Messerleiste gerade Mid 403 53016 51
16 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS complaint
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

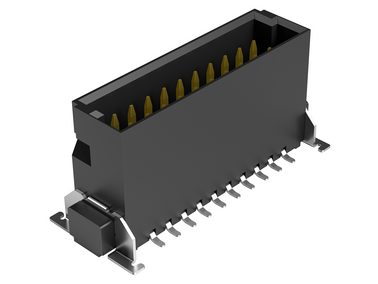

One27 Male mid-profile Part No. 413-53020-51

ept One27 Messerleiste gerade Mid 403 53020 51
20 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

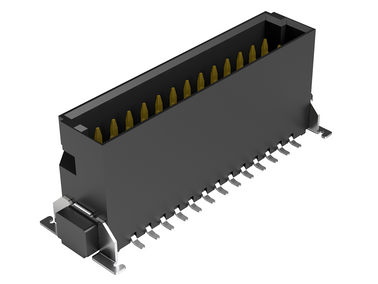

One27 Male mid-profile Part No. 413-53026-51

ept One27 Messerleiste gerade Mid 403 53026 51
26 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS complaint
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

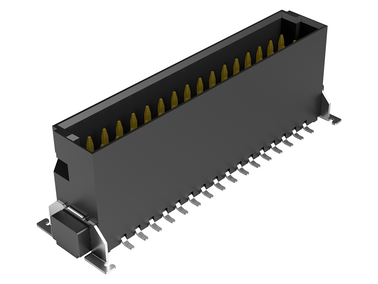

One27 Male mid-profile Part No. 413-53032-51

ept One27 Messerleiste gerade Mid 403 53032 51
32 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS complaint
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

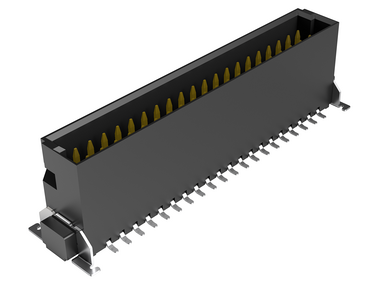

One27 Male mid-profile Part No. 413-53040-51

ept One27 Messerleiste gerade Mid 403 53040 51
40 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

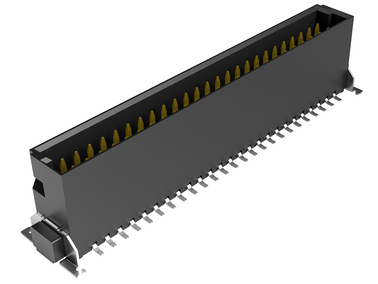

One27 Male mid-profile Part No. 413-53050-51

ept One27 Messerleiste gerade Mid 403 53050 51
50 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS complaint
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male mid-profile Part No. 413-53068-51

ept One27 Messerleiste gerade Mid 403 53068 51
68 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS complaint
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

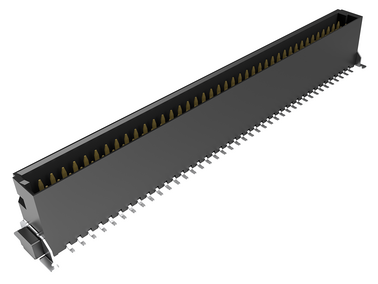

One27 Male mid-profile Part No. 413-53080-51

ept One27 Messerleiste gerade Mid 403 53080 51
80 pins, unmated stacking height: 3.25 mm, for board-to-board distances from 9.5 to 18.4 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
Cable-to-Board
High Density
Rugged
One27 Male mid-profile Part No. 413-53080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance9.5 mm to 18.4 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact Materialcopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS complaint
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54012-51

ept One27 Messerleiste gerade High 403 54012 51
12 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54016-51

ept One27 Messerleiste gerade High 403 54016 51
16 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54020-51

ept One27 Messerleiste gerade High 403 54020 51
20 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54026-51

ept One27 Messerleiste gerade High 403 54026 51
26 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54032-51

ept One27 Messerleiste gerade High 403 54032 51
32 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54040-51

ept One27 Messerleiste gerade High 403 54040 51
40 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54050-51

ept One27 Messerleiste gerade High 403 54050 51
50 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54068-51

ept One27 Messerleiste gerade High 403 54068 51
68 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male high-profile Part No. 403-54080-51

ept One27 Messerleiste gerade High 403 54080 51
80 pins, unmated stacking height: 4.85 mm, for board-to-board distances from 11.1 to 20.0 mm, SMT, pitch 1.27 mm, Performance level 1
Parallel
Perpendicular
SMT
High Density
Rugged
One27 Male high-profile Part No. 403-54080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Board-to-Board Distance11.1 mm to 20.0 mm
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
3.1 A at 20°C (4 of 50 pins)
1.4 A at 20°C (50 of 50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Female angled

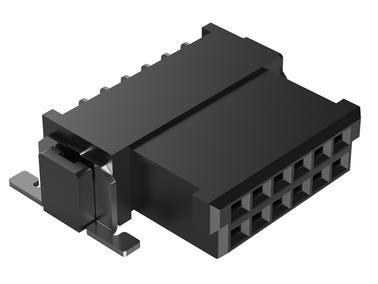

One27 Female angled Part No. 404-51012-51

ept One27 Federleiste gewinkelt 404 51012 51
12 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

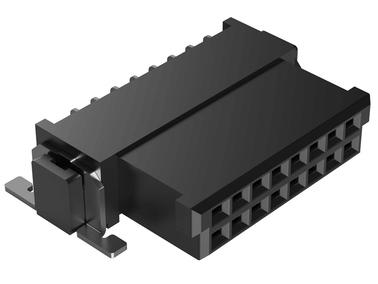

One27 Female angled Part No. 404-51016-51

ept One27 Federleiste gewinkelt 404 51016 51
16 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female angled Part No. 404-51020-51

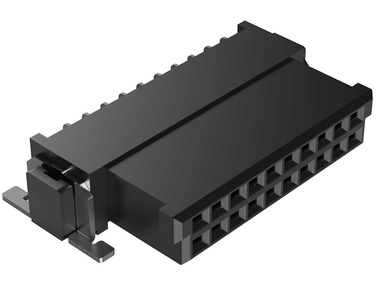

ept One27 Federleiste gewinkelt 404 51020 51
20 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female angled Part No. 404-51026-51

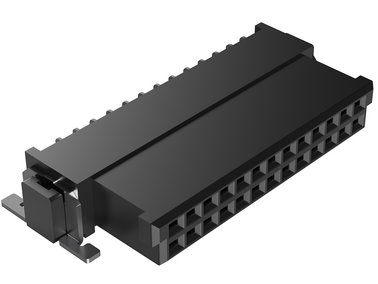

ept One27 Federleiste gewinkelt 404 51026 51
26 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female angled Part No. 404-51032-51

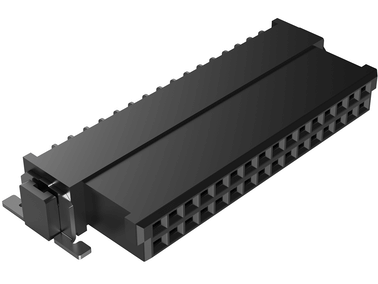

ept One27 Federleiste gewinkelt 404 51032 51
32 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female angled Part No. 404-51040-51

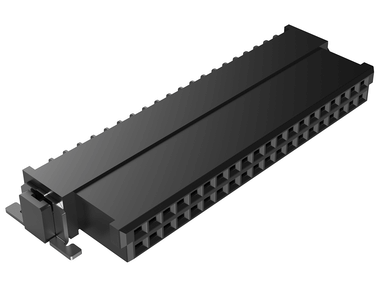

ept One27 Federleiste gewinkelt 404 51040 51
40 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female angled Part No. 404-51050-51

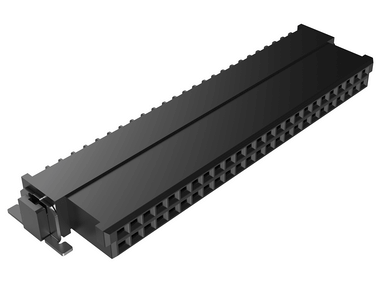

ept One27 Federleiste gewinkelt 404 51050 51
50 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female angled Part No. 404-51068-51

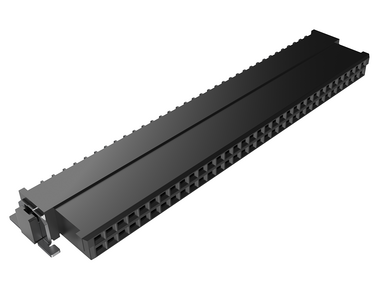

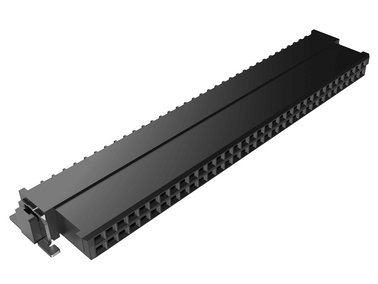

ept One27 Federleiste gewinkelt 404 51068 51
68 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female angled Part No. 404-51080-51

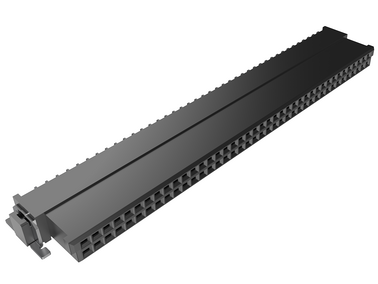

ept One27 Federleiste gewinkelt 404 51080 51
80 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Female angled Part No. 404-51080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Male angled

One27 Male angled Part No. 403-51012-51

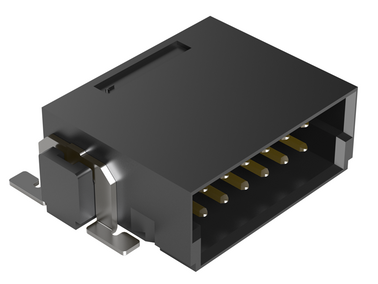

ept One27 Messerleiste gewinkelt 403 51012 51
12 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51012-51 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male angled Part No. 403-51016-51

ept One27 Messerleiste gewinkelt 403 51016 51
16 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51016-51 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male angled Part No. 403-51020-51

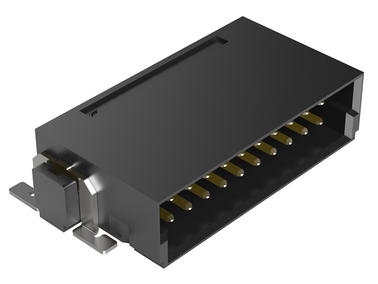

ept One27 Messerleiste gewinkelt 403 51020 51
20 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51020-51 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male angled Part No. 403-51026-51

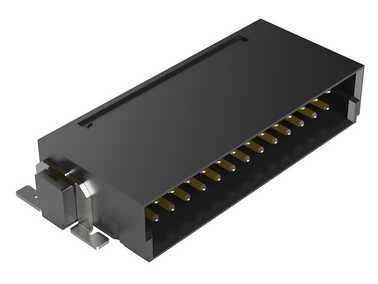

ept One27 Messerleiste gewinkelt 403 51026 51
26 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51026-51 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male angled Part No. 403-51032-51

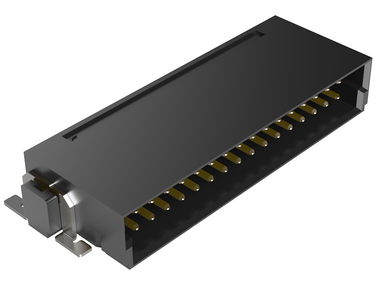

ept One27 Messerleiste gewinkelt 403 51032 51
32 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51032-51 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male angled Part No. 403-51040-51

ept One27 Messerleiste gewinkelt 403 51040 51
40 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51040-51 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male angled Part No. 403-51050-51

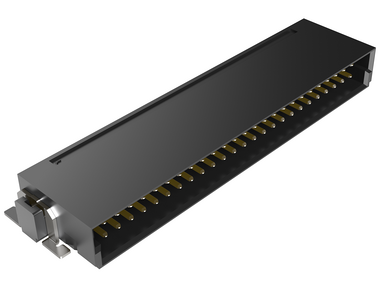

ept One27 Messerleiste gewinkelt 403 51050 51
50 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51050-51 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male angled Part No. 403-51068-51

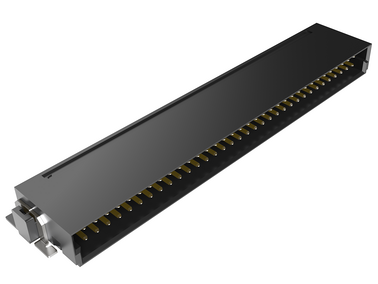

ept One27 Messerleiste gewinkelt 403 51068 51
68 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51068-51 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Male angled Part No. 403-51080-51

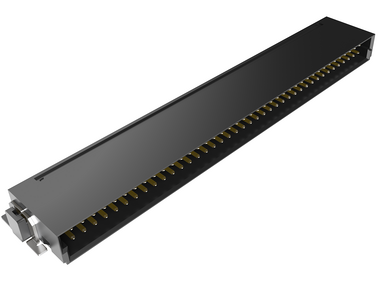

ept One27 Messerleiste gewinkelt 403 51080 51
80 pins, right angled, SMT, pitch 1.27 mm, Performance level 1
Perpendicular
Horizontal
SMT
High Density
Rugged
One27 Male angled Part No. 403-51080-51 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over NiP over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Coplanarity≤ 0.1 mm
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Operational Current
IEC 60512-5-2
1.4 A at 20°C (50 pins)
Contact Resistance
IEC 60512-2-1
≤ 25 mΩ
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Processing

Soldering Temperature
JEDEC J-STD-020E
20 - 40 s at 260°C
MSL
JEDEC J-STD-020E
1
AssemblyPick and Place

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Female IDC

One27 Female IDC Part No. 404-59012-61

One27 Federleiste IDC Neu Foto
12 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59012-61 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female IDC Part No. 404-59016-61

One27 Federleiste IDC Neu Foto
16 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59016-61 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female IDC Part No. 404-59020-61

One27 Federleiste IDC Neu Foto
20 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59020-61 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female IDC Part No. 404-59026-61

One27 Federleiste IDC Neu Foto
26 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59026-61 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female IDC Part No. 404-59032-61

One27 Federleiste IDC Neu Foto
32 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59032-61 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female IDC Part No. 404-59040-61

One27 Federleiste IDC Neu Foto
40 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59040-61 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female IDC Part No. 404-59050-61

One27 Federleiste IDC Neu Foto
50 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59050-61 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female IDC Part No. 404-59068-61

One27 Federleiste IDC Neu Foto
68 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59068-61 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 Female IDC Part No. 404-59080-61

One27 Federleiste IDC Neu Foto
80 pins, for IDC-connection with ribbon cable AWG 30/7, pitch ribbon cable 0.635 mm, pitch connector 1.27 mm, Performance level 1, The female IDC is designed to be used for cable assembly. Observe the recommendations for processing.
Cable-to-Board
High Density
Rugged
One27 Female IDC Part No. 404-59080-61 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Operating Temperature Range-55°C to + 125°C (depending on used cable type)

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles
Vibration, sinusoidal
IEC 60512-6-4
10 - 2000 Hz, 20g
Contact mating problems if vibrations occur, sinusoidal
IEC 60512-2-5
≤ 1 µs
Shock, semi-sinusoidal
IEC 60512-6-3
50g, 11 ms
Contact mating problems if shock occur, semi-sinusoidal
IEC 60512-2-5
≤ 1 µs

Electrical

Contact Resistance
IEC 60512-2-1
≤ 25 mΩ Female --> Male
≤ 10 mΩ IDC --> Cable
Clearance and Creepagemin. 0.4 mm
Insulation Resistance
IEC 60512-3-1
≥ 10 GΩ
Test Voltage
IEC 60512-4-1
500 VAC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
One27 cable assembly PVC standard

One27 cable assembly 12 pins 100 mm version 120 Part No. 404-6112-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
12 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 12 pins 100 mm version 120 Part No. 404-6112-100-120-1 - Technical data

Basics

No. of Contacts12
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly 16 pins 100 mm version 120 Part No. 404-6116-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
16 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 16 pins 100 mm version 120 Part No. 404-6116-100-120-1 - Technical data

Basics

No. of Contacts16
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly 20 pins 100 mm version 120 Part No. 404-6120-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
20 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 20 pins 100 mm version 120 Part No. 404-6120-100-120-1 - Technical data

Basics

No. of Contacts20
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly 26 pins 100 mm version 120 Part No. 404-6126-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
26 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 26 pins 100 mm version 120 Part No. 404-6126-100-120-1 - Technical data

Basics

No. of Contacts26
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly 32 pins 100 mm version 120 Part No. 404-6132-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
32 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 32 pins 100 mm version 120 Part No. 404-6132-100-120-1 - Technical data

Basics

No. of Contacts32
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly 40 pins 100 mm version 120 Part No. 404-6140-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
40 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 40 pins 100 mm version 120 Part No. 404-6140-100-120-1 - Technical data

Basics

No. of Contacts40
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly 50 pins 100 mm version 120 Part No. 404-6150-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
50 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 50 pins 100 mm version 120 Part No. 404-6150-100-120-1 - Technical data

Basics

No. of Contacts50
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly 68 pins 100 mm version 120 Part No. 404-6168-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
68 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 68 pins 100 mm version 120 Part No. 404-6168-100-120-1 - Technical data

Basics

No. of Contacts68
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly 80 pins 100 mm version 120 Part No. 404-6180-100-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
80 pins, cable length 100 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly 80 pins 100 mm version 120 Part No. 404-6180-100-120-1 - Technical data

Basics

No. of Contacts80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni
Termination areaSn over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
One27 cable assembly PVC customization

One27 cable assembly version 100 Part No. 404-61NN-LLL-100-1

One27 Kabelkonfektion Konfektionsvariante 100 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 100 Part No. 404-61NN-LLL-100-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 110 Part No. 404-61NN-LLL-110-1

ept One27 Kabelkonfektion 110
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 110 Part No. 404-61NN-LLL-110-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 120 Part No. 404-61NN-LLL-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 120 Part No. 404-61NN-LLL-120-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 130 Part No. 404-61NN-LLL-130-1

One27 Kabelkonfektion Konfektionsvariante 130 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 130 Part No. 404-61NN-LLL-130-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 140 Part No. 404-61NN-LLL-140-1

ept One27 Kabelkonfektion 140
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 140 Part No. 404-61NN-LLL-140-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 400 Part No. 404-61NN-LLL-400-1

One27 Kabelkonfektion Konfektionsvariante 400 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 400 Part No. 404-61NN-LLL-400-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 420 Part No. 404-61NN-LLL-420-1

One27 Kabelkonfektion Konfektionsvariante 420 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 420 Part No. 404-61NN-LLL-420-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 440 Part No. 404-61NN-LLL-440-1

ept One27 Kabelkonfektion 440
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable PVC: -30°C to +105°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 440 Part No. 404-61NN-LLL-440-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-30°C to + 105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialCopper alloy
PlatingAu over PdNi over Ni

Mechanical

Pitch1.27 mm
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.2 A at 25°C
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
One27 high temperature

One27 cable assembly version 100 Part No. 404-62NN-LLL-100-1

One27 Kabelkonfektion Konfektionsvariante 100 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable TPE-S: -55°C to +125°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 100 Part No. 404-62NN-LLL-100-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0 (female IDC)
LSZH EVA/PO, UL 22088 (cable)
CTI value
IEC 60112
175 (female IDC)
Contact MaterialCopper alloy (female IDC)
Copper tin plated (cable)
PlatingAu over PdNi over Ni (female IDC)
Termination areaSn over Ni

Mechanical

Pitch1.27 mm (female IDC)
0.635mm (cable)
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.3 A at 25°C
Contact ResistanceMax. 354 Ω/km at 20°C (cable)
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314 & E493123
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 110 Part No. 404-62NN-LLL-110-1

ept One27 Kabelkonfektion 110
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable TPE-S: -55°C to +125°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 110 Part No. 404-62NN-LLL-110-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0  (female IDC)
TPE-ET S (cable)
CTI value
IEC 60112
175 (female IDC)
Contact MaterialCopper alloy (female IDC)
Copper tin plated (cable)
PlatingAu over PdNi over Ni (female IDC)
Termination areaSn over Ni

Mechanical

Pitch1.27 mm (female IDC)
0.635mm (cable)
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.3 A at 25°C
Contact ResistanceMax. 354 Ω/km at 20°C (cable)
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314 & E493123
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 120 Part No. 404-62NN-LLL-120-1

One27 Kabelkonfektion Konfektionsvariante 120 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable TPE-S: -55°C to +125°C (in idle state), colored lead on a1
Cable-to-Board
High Density
One27 cable assembly version 120 Part No. 404-62NN-LLL-120-1 - Technical data

Basics

No. of Contacts12 - 80
Termination TechnologySMT
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialLCP, UL 94 V-0  (female IDC)
TPE-ET S (cable)
CTI value
IEC 60112
175 (female IDC)
Contact MaterialCopper alloy (female IDC)
Copper tin plated (cable)
PlatingAu over PdNi over Ni (female IDC)
Termination areaSn over Ni

Mechanical

Pitch1.27 mm (female IDC)
0.635mm (cable)
Mating Force per Pin≤ 0.5 N
Separating Force per Pin≥ 0.1 N
Durability
IEC 60512-9-1
Performance level 1: 500 mating cycles

Electrical

Operational Current1.3 A at 25°C
Contact ResistanceMax. 354 Ω/km at 20°C (cable)
Clearance and Creepagemin. 0.4 mm

Approval / Compliance

UL fileE130314 & E493123
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

One27 cable assembly version 130 Part No. 404-62NN-LLL-130-1

One27 Kabelkonfektion Konfektionsvariante 130 Foto
12 to 80 pins, freely selectable cable length from 30 to 999 mm, AWG 30/7 pitch ribbon cable 0.635 mm, assembly in insulation displacement connectors (IDC), type of cable TPE-S: -55°C to +125°C (in idle state), colored lead on a1
Cable-to-Board
High Density
