Velox Highspeed Backplane

Modular Backplane Connector System Velox® is a modular connector system for highspeed backplane applications. It was specifically designed for markets with high performance requirements. The Velox® product series meets the demanding requirements of VITA 46 systems. Four different types are available, and customized assembly is possible. This gives developers more flexibility when designing circuit board layouts. In addition, a 1.27-µm gold surface ensures the durability of the system.

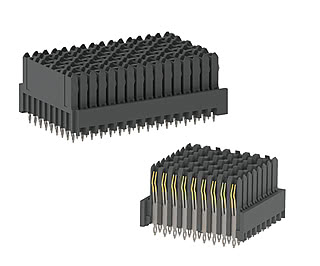

Velox Titelbild

Features

  • 10 Gbps
  • Robust design
  • Tested in accordance with VITA 46
  • High durability, 200 mating cycles
  • “Heavy gold” plating
  • Internal contacts
  • Modular connector system
  • Customized contact assembly

Applications

  • Military
  • Aerospace industry
  • Systems for high loads
  • Telecommunications/data transfer rate
Filter
16-left

Velox 16-left Part No. 308-52100-41

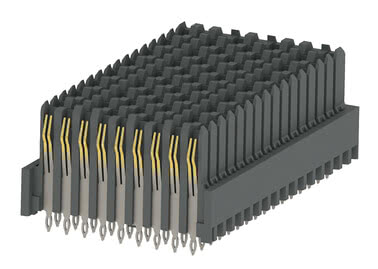

Velox FL 16 left Foto
plating Press-fit Zone: SnPb, fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox 16-left Part No. 308-52100-41 - Technical data

Basics

SpecificationVITA 46
No. of Contacts144
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox 16-left Part No. 308-52100-42

Velox FL 16 left Foto
plating Press-fit Zone: Sn (RoHS compliant), fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox 16-left Part No. 308-52100-42 - Technical data

Basics

SpecificationVITA 46
No. of Contacts144
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
center

Velox center Part No. 308-50100-41

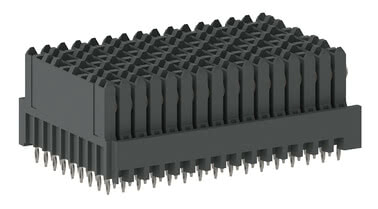

Velox Center Foto
plating Press-fit Zone: SnPb, fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox center Part No. 308-50100-41 - Technical data

Basics

SpecificationVITA 46
No. of Contacts144
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox center Part No. 308-50100-42

Velox Center Foto
plating Press-fit Zone: Sn (RoHS compliant), fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox center Part No. 308-50100-42 - Technical data

Basics

SpecificationVITA 46
No. of Contacts144
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox center Part No. 308-50101-41

Velox Center Foto
plating Press-fit Zone: SnPb, custom loaded (135 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox center Part No. 308-50101-41 - Technical data

Basics

SpecificationVITA 46
No. of Contacts135
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox center Part No. 308-50101-42

Velox Center Foto
plating Press-fit Zone: Sn (RoHS compliant), custom loaded (135 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox center Part No. 308-50101-42 - Technical data

Basics

SpecificationVITA 46
No. of Contacts135
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox center Part No. 308-50102-41

Velox Center Foto
plating Press-fit Zone: SnPb, custom loaded (71 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox center Part No. 308-50102-41 - Technical data

Basics

SpecificationVITA 46
No. of Contacts71
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox center Part No. 308-50102-42

Velox Center Foto
plating Press-fit Zone: Sn (RoHS compliant), custom loaded (71 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox center Part No. 308-50102-42 - Technical data

Basics

SpecificationVITA 46
No. of Contacts71
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox center Part No. 308-50103-41

Velox Center Foto
plating Press-fit Zone: SnPb, custom loaded (80 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox center Part No. 308-50103-41 - Technical data

Basics

SpecificationVITA 46
No. of Contacts80
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox center Part No. 308-50103-42

Velox Center Foto
plating Press-fit Zone: Sn (RoHS compliant), custom loaded (80 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox center Part No. 308-50103-42 - Technical data

Basics

SpecificationVITA 46
No. of Contacts80
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
16-right

Velox 16-right Part No. 308-51100-41

Velox FL 16 right Foto
plating Press-fit Zone: SnPb, fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox 16-right Part No. 308-51100-41 - Technical data

Basics

SpecificationVITA 46
No. of Contacts144
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox 16-right Part No. 308-51100-42

Velox FL 16 right Foto
plating Press-fit Zone: Sn (RoHS compliant), fully loaded (144 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox 16-right Part No. 308-51100-42 - Technical data

Basics

SpecificationVITA 46
No. of Contacts144
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
8-left

Velox 8-left Part No. 308-52200-41

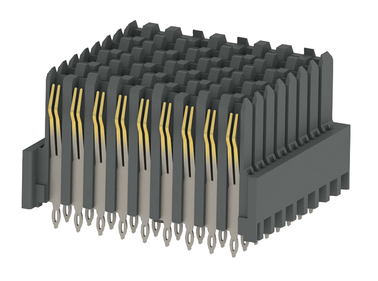

Velox FL 8 left Foto
plating Press-fit Zone: SnPb, fully loaded (72 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox 8-left Part No. 308-52200-41 - Technical data

Basics

SpecificationVITA 46
No. of Contacts72
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, SnPb on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

Velox 8-left Part No. 308-52200-42

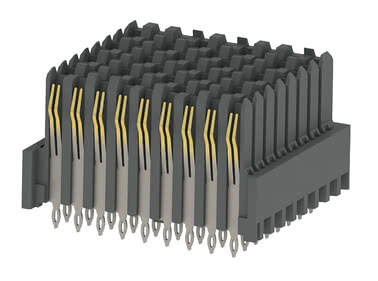

Velox FL 8 left Foto
plating Press-fit Zone: Sn (RoHS compliant), fully loaded (72 contacts), termination technology: Press-fit, pitch 1.8 mm, data transfer rate 10 Gbit/s
Perpendicular
Press-fit
High Speed
Rugged
Velox 8-left Part No. 308-52200-42 - Technical data

Basics

SpecificationVITA 46
No. of Contacts72
Termination TechnologyPress-fit
Termination Length1.62 mm
Operating Temperature Range-55°C to +105°C

Material

Insulator MaterialLCP, UL 94 V-0
CTI value
IEC 60112
175
Contact MaterialPhosphor Bronze
Plating1.27 µm Au over Ni on contact area, Sn on Press-fit zone

Mechanical

Pitch1.8 mm
Mating Force per Pinmax. 0.75 N
Separating Force per Pinmin. 0.15 N
Durability200 mating cycles

Electrical

Operational Current1.0 A (<30°C)
Operational Voltage50 VAC Peak or DC
Contact Resistancemax. 80 mΩ
Clearance and Creepage≥ 0.7 mm
Insulation Resistancemin. 1000 MΩ
Test Voltage500 V (AC/DC)
Data Transfer Rate10 Gbit/s

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Username:
Vielen Dank! Wir werden Ihre Anforderungen prüfen und mit Ihnen Kontakt aufnehmen.

Bei Fragen stehen wir Ihnen jederzeit per E-Mail oder Telefon zur Verfügung.

Kein passendes Produkt gefunden - Produkt jetzt anfragen:

Felder mit * sind Pflichtfelder.

Features

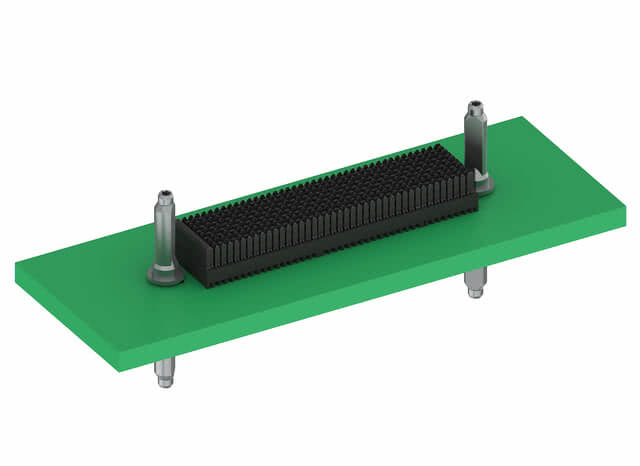

Velox Anwendung mit Guiding
The Velox®connectors feature a robust design including a gold surface of 1.27 μm (50 μin) thickness. The contacts are on the inside, giving them additional protection. All these features contribute to a very high durability of at least 200 mating cycles. For this reason, Velox® is particularly suitable for highspeed backplane applications with a data transfer rates of 10 Gbps. The high resistance of the connectors has already been proven in tests carried out in accordance with the VITA 46 standard.
Velox1
Velox 8-left

detail overview

double beam contact
1,27µm Au over Ni
press-fit zone eye of the needle

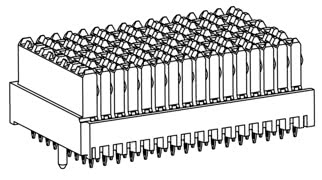

Velox2
Velox 16-left

detail overview

pinless surface
guiding post
LCP

The VITA 46 Specification:

The VITA 46 specification (or VPX) describes a new highspeed connector system. It transfers Gigabit Ethernet, PCI Express, Serial RapidIO, and InfiniBand, among others. The well-known 6HE and 3HE European PCB form factors from VMEbus are supported in order to ensure maximum compatibility. This also makes hybrid systems a possibility. The VITA 46 standard was developed by VITA mainly for computer systems that need to be able to withstand high stresses, for example, military applications.

Four different designs can be combined with each other in a modular way. Velox® connectors are very flexible due to the different numbers of contacts. This feature is underlined by the possibility to equip the variants individually.

Developer view:

The Velox® connector system was developed by ept specifically for VITA 46 systems (also called VPX systems). Velox® comprises four different types of connectors with a modular layout. Customers can specify the contact counts themselves. Fully pre-assembled connectors are available with 72 or 144 contacts, or the contact count can be specified individually. This gives developers added flexibility when designing their circuit boards. The system is specifically designed for applications with high requirements on performance. The system is extremely resilient thanks to its gold plating and the contacts being located inside of the housing.

FAQ:
