hm 2.0 – Hard Metric Connectors
High Contact Density The hm 2.0 series of hard metric connectors was developed in accordance with the international IEC 61076-4-101 standard. These shielded connectors have a pitch of 2 mm and are suitable for applications that require high contact density and reliability. The connector system is rather popular in the area of backplane. Standardization ensures that the connectors are compatible with products from different manufacturers.
Features
- Wide selection of types
- Modular connectors with a pitch of 2 mm
- Five or eight signal rows
- Twelve different pin lengths
- Customized assembly layout as an option
- Available with or without shielding
- Supports data transfer rates of up to 3.125 Gbps
- Robust design

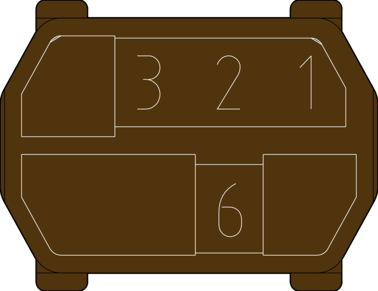

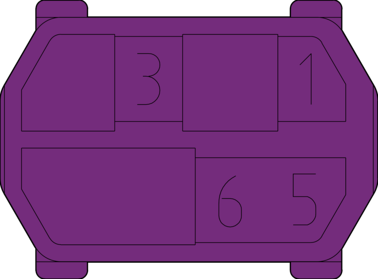

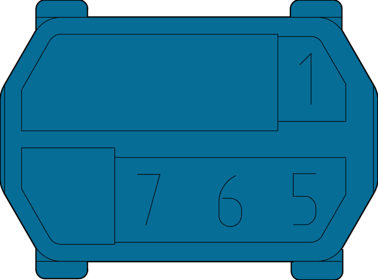

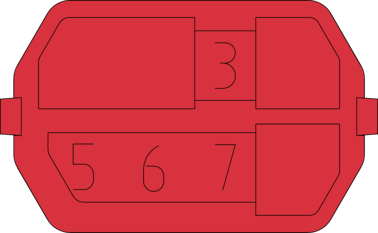

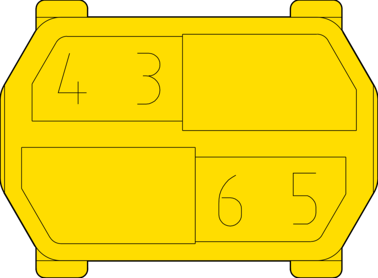

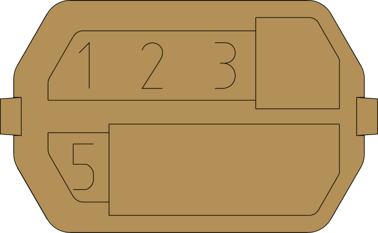

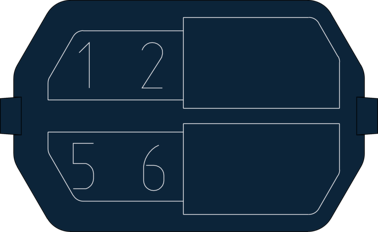

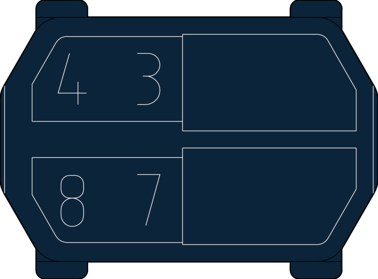

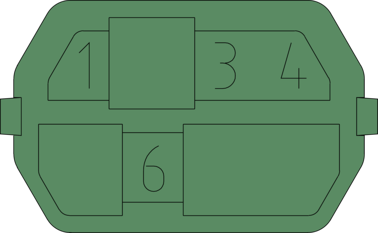

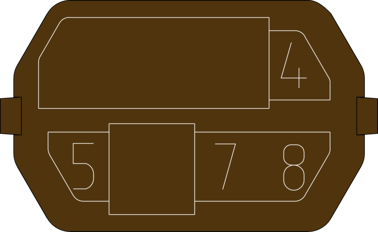

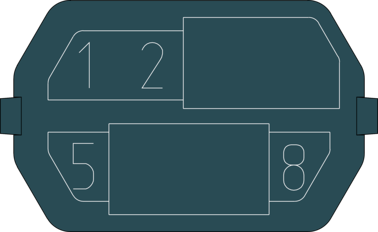

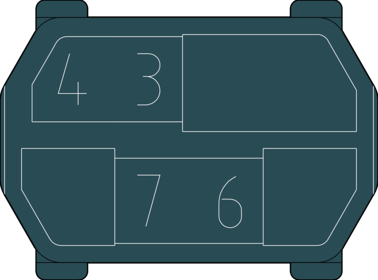

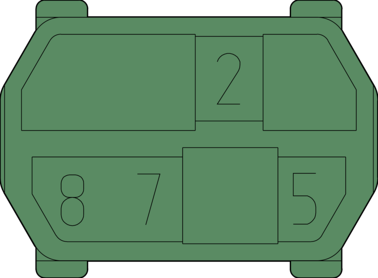

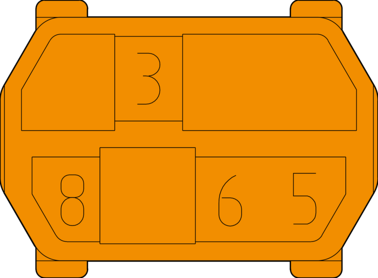

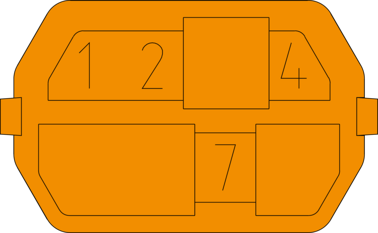

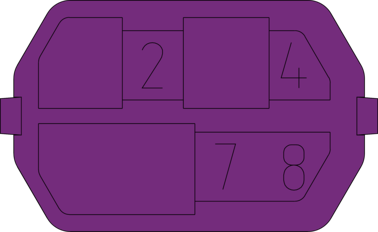

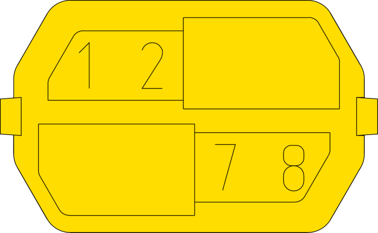

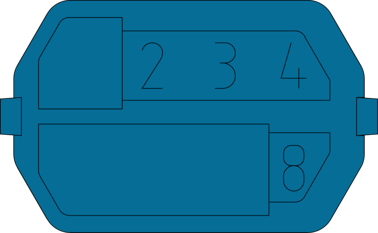

- Accessories such as shrouds and coding keys
Applications
- Telecom
- Network systems
- CompactPCI
- Medical technology
- Industrial computers (IPC)
hm2.0: Overview
Filter
Female connectors
hm2.0 Female connector, type A Part No. 244-11000-15
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A Part No. 244-11300-15
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A Part No. 244-11305-15
90 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A Part No. 244-11306-15
90 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type A15 Part No. 244-13000-15
60 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B25 Part No. 244-21000-15
125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B25 Part No. 244-21300-15
125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit

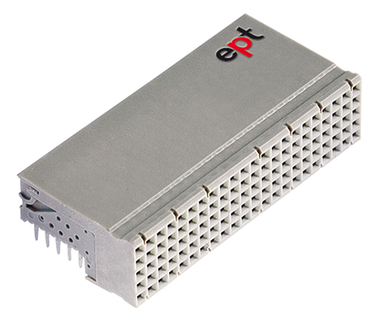

hm2.0 Female connector, type B22 Part No. 244-22000-15
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B22 Part No. 244-22300-15
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit

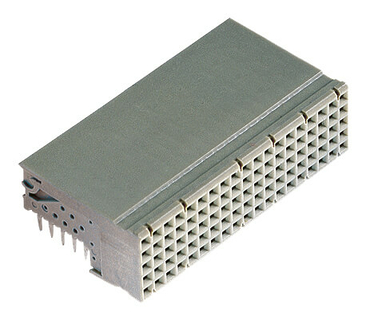

hm2.0 Female connector, type B19 Part No. 244-23000-15
95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type B19 Part No. 244-23300-15
95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type C Part No. 244-31000-15
55 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type C Part No. 244-31300-15
55 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit

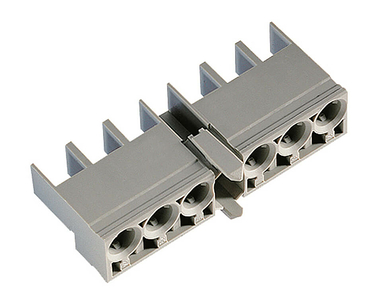

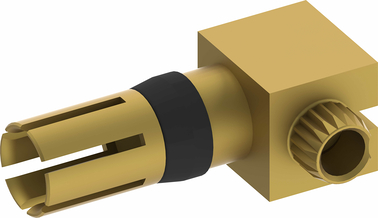

hm2.0 Female connector, type L Part No. 244-51000
for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit

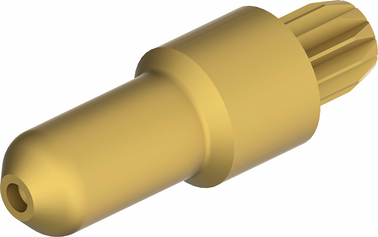

Power

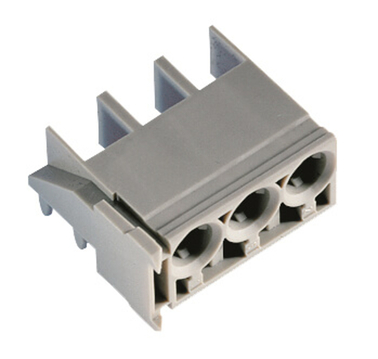

hm2.0 Female connector, type N Part No. 244-52000
for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power

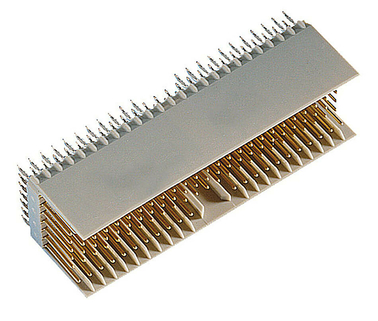

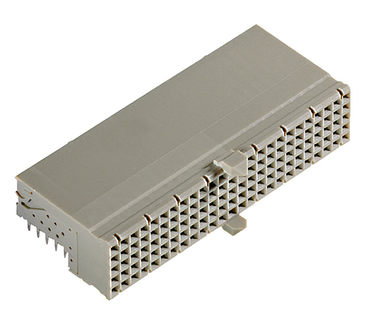

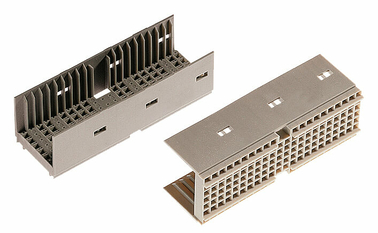

hm2.0 Female connector, type AB25 Part No. 244-61000-15
125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB25 Part No. 244-61300-15
125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit

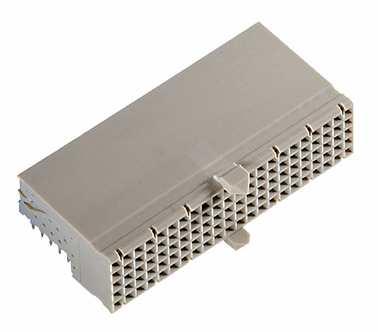

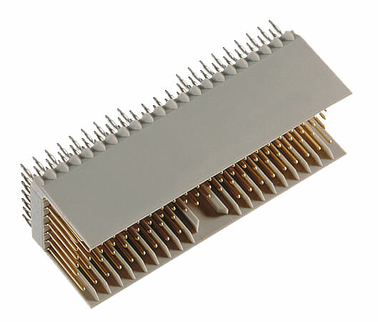

hm2.0 Female connector, type AB22 Part No. 244-62000-15
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB22 Part No. 244-62300-15
110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit

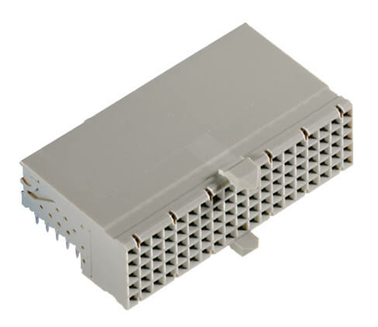

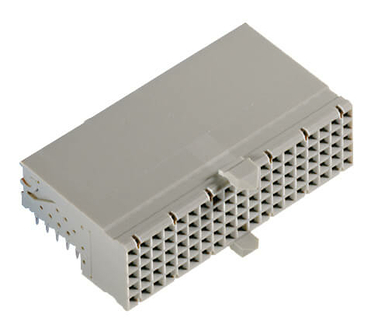

hm2.0 Female connector, type AB19 Part No. 244-63000-15
95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type AB19 Part No. 244-63300-15
95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type D Part No. 246-11000-15
176 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type D Part No. 246-11300-15
176 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type E Part No. 246-21000-15
200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type E Part No. 246-21300-15
200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit

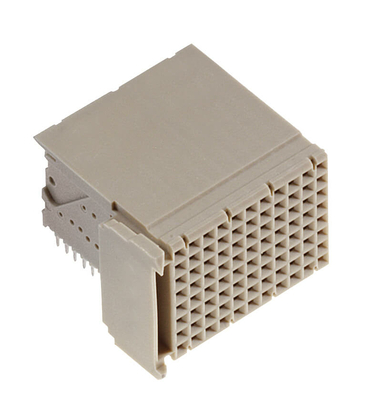

hm2.0 Female connector, type F Part No. 246-31000-15
88 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type F Part No. 246-31300-15
88 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit

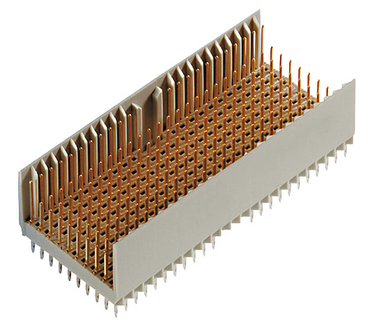

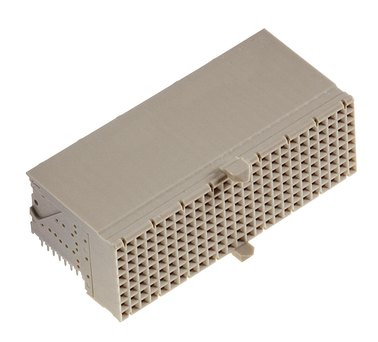

hm2.0 Female connector, type DE Part No. 246-61000-15
200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Female connector, type DE Part No. 246-61300-15
200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101
Perpendicular
Press-fit

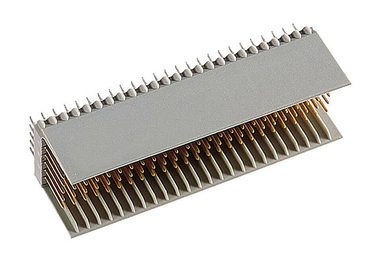

Male connectors

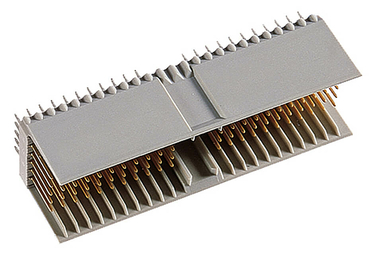

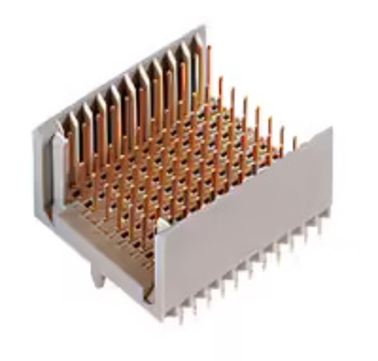

hm2.0 Male connector, type A Part No. 243-11010-15
110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11310-15
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11321-15
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11322-15
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11323-15
100 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11360-15F
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11709-15F
100 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11710-15F
154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11715-15F
154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A Part No. 243-11734-15F
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A15 Part No. 243-13010-15
60 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A15 Part No. 243-13020-15
60 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type A15 Part No. 243-13310-15
84 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B25 Part No. 243-21010-15
125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B25 Part No. 243-21020-15
125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B25 Part No. 243-21310-15
175 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B25 Part No. 243-21320-15
175 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22310-15
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22311-15
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22312-15
132 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22320-15
154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22351-15F
132 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22360-15F
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22361-15F
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22371-15F
154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B22 Part No. 243-22734-15F
154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23310-15
95 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23320-15
133 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23360-15F
133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23361-15F
133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23371-15F
133 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23700-15F
133 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type B19 Part No. 243-23716-15F
133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit

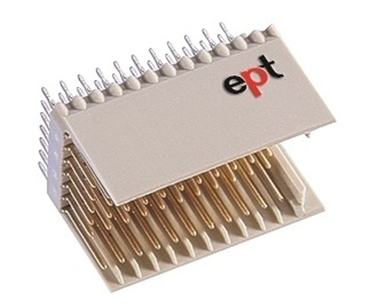

hm2.0 Male connector, type C Part No. 243-31010-15
55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type C Part No. 243-31020-15
55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type C Part No. 243-31310-15
77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type C Part No. 243-31320-15
77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit

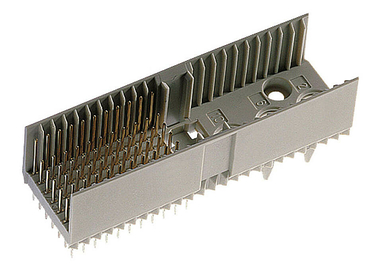

hm2.0 Male connector, type M Part No. 243-41010-15
55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Male connector, type M Part No. 243-41310-15
77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power

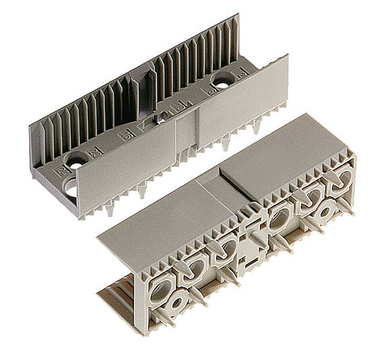

hm2.0 Male connector, type L Part No. 243-51000
for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Male connector, type N Part No. 243-52000
for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Power
hm2.0 Male connector, type AB25 Part No. 243-61010-15
125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB25 Part No. 243-61310-15
169 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB25 Part No. 243-61320-15
169 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB25 Part No. 243-61360-15F
169 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB22 Part No. 243-62010-15
110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB22 Part No. 243-62310-15
146 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB22 Part No. 243-62320-15
146 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB22 Part No. 243-62360-15F
146 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB19 Part No. 243-63010-15
95 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB19 Part No. 243-63310-15
127 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB19 Part No. 243-63320-15
127 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type AB19 Part No. 243-63360-15F
127 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type D Part No. 245-11010-15
176 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type D Part No. 245-11310-15
220 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit

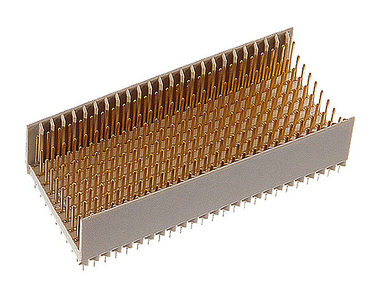

hm2.0 Male connector, type E Part No. 245-21010-15
200 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type E Part No. 245-21310-15
250 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type F Part No. 245-31010-15
88 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type F Part No. 245-31310-15
110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type DE Part No. 245-61010-15
200 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Male connector, type DE Part No. 245-61310-15
244 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Accessories
hm2.0 Shroud C Part No. 243-5511-1/1
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-2/1
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-3/1
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-4/1
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud C Part No. 243-5511-5/1
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-1/1
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-2/1
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-3/1
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-4/1
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud A Part No. 243-5525-5/1
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-1/1
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-2/1
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-3/1
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-4/1
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B19 Part No. 243-5619-5/1
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-1/1
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-2/1
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-3/1
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-4/1
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B22 Part No. 243-5622-5/1
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-1/1
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-2/1
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-3/1
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-4/1
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud B25 Part No. 243-5625-5/1
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-1/1
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-2/1
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-3/1
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-4/1
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB19 Part No. 243-5719-5/1
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-1/1
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-2/1
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-3/1
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-4/1
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB22 Part No. 243-5722-5/1
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-1/1
for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-2/1
for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-3/1
for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-4/1
for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Shroud AB25 Part No. 243-5725-5/1
for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101
Perpendicular
hm2.0 Coding key male connector Part No. 243-8011
for hm male connectors, Nut brown RAL 8011
Perpendicular
hm2.0 Coding key male connector Part No. 243-8012
for hm male connectors, Strawberry red RAL 3018, Telephony Specification
Perpendicular
hm2.0 Coding key male connector Part No. 243-8013
for hm male connectors, Blue lilac RAL 4005
Perpendicular
hm2.0 Coding key male connector Part No. 243-8014
for hm male connectors, Brilliant blue RAL 5007, 5.0 V cPCI
Perpendicular
hm2.0 Coding key male connector Part No. 243-8021
for hm male connectors, Reseda green RAL 6011
Perpendicular
hm2.0 Coding key male connector Part No. 243-8031
for hm male connectors, Cadmium yellow RAL 1021, 3.3 V cPCI
Perpendicular
hm2.0 Coding key male connector Part No. 243-8032
for hm male connectors, Slate grey RAL 7015
Perpendicular
hm2.0 Coding key male connector Part No. 243-8033
for hm male connectors, Steel blue RAL 5011
Perpendicular
hm2.0 Coding key male connector Part No. 243-8034
for hm male connectors, Pastel orange RAL 2003
Perpendicular
hm2.0 Coding key male connector Part No. 243-8041
for hm male connectors, Ocher yellow RAL 1024
Perpendicular
hm2.0 lower shield, type A Part No. 244-11600-1
22 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type B25 Part No. 244-21600-1
25 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type B22 Part No. 244-22600-1
22 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type B19 Part No. 244-23600-1
19 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type C Part No. 244-31600-1
11 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 Coding key female connector Part No. 244-8011
for hm female connectors, Nut brown RAL 8011
Perpendicular
hm2.0 Coding key female connector Part No. 244-8012
for hm female connectors, Strawberry red RAL 3018, Telephony Specification
Perpendicular
hm2.0 Coding key female connector Part No. 244-8013
for hm female connectors, Blue lilac RAL 4005
Perpendicular
hm2.0 Coding key female connector Part No. 244-8014
for hm female connectors, Brilliant blue RAL 5007, 5.0 V cPCI
Perpendicular
hm2.0 Coding key female connector Part No. 244-8021
for hm female connectors, Reseda green RAL 6011
Perpendicular
hm2.0 Coding key female connector Part No. 244-8031
for hm female connectors, Cadmium yellow RAL 1021, 3.3 V cPCI
Perpendicular
hm2.0 Coding key female connector Part No. 244-8032
for hm female connectors, Slate grey RAL 7015
Perpendicular
hm2.0 Coding key female connector Part No. 244-8033
for hm female connectors, Steel blue RAL 5011
Perpendicular
hm2.0 Coding key female connector Part No. 244-8034
for hm female connectors, Pastel orange RAL 2003
Perpendicular
hm2.0 Coding key female connector Part No. 244-8041
for hm female connectors, Ocher yellow RAL 1024
Perpendicular
hm2.0 lower shield, type D Part No. 246-11600-1
22 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type E Part No. 246-21600-1
25 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
hm2.0 lower shield, type F Part No. 246-31600-1
11 contacts, termination length 3.4 mm, for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101
Perpendicular
Press-fit
Features
hm 2.0 connectors are used in CompactPCI, a PICMG standard for high-end systems in 19-inch technology with passive backplanes. They are suitable for strict standards as regards performance, robustness, and reliability due to their robust design and data transfer rates of up to 3.125 Gbps. hm 2.0 connectors are increasingly used in industrial applications as well, because of their robust connector system and high contact density with a pitch of 2 mm. The connectors are available with five or eight signal rows and 12 different pin lengths.
detail overview
detail overview
The IEC 61076-4-101 standard:
The hm 2.0 series of hard metric connectors from ept was developed and manufactured in accordance with the international IEC 61076-4-101 standard. This provides users with a global standard for the connection of printed circuit boards by means of multi-pin connectors. Printed circuit boards can be easily exchanged from system to system. Important parameters such as fixation, shielding, and coding remain compatible beyond the application.
hm 2.0 connectors from ept are designed with a pitch of 2 mm. These connectors can easily be lined up without interrupting the 2 mm pitch at the interfaces. This arrangement offers advantages especially in the design of the printed circuit board, as there is no loss of space within individual connector modules.
Modules A, D, L, and M are equipped with a multi-purpose block. This accommodates the coding keys provided in accordance with the standard. The molded guides ensure proper orientation of the male and female connectors to each other as well as anti-twist protection before contact is made. The coding keys are connected and released again using a simple plug and pull tool.
ept offers four different lengths for the hm 2.0 male connectors for the connection side and three lengths for the mating side. The different termination lengths are necessary to connect/disconnect certain signal or ground lines first when plugging or unplugging assemblies. The long 11.25-mm connections are mainly needed for the shield rows z and f.
The insulator materials are fitted with chamfers at the ends for better orientation and to prevent the connectors from twisting. These chamfers ensure precise positioning on the circuit board and provide the modules the necessary retention force.
Coding of the connectors is essential in a modern bus system to prevent confusion with the circuit boards. The possibility of coding is already specified in IEC 61076-4-101. Coding keys can be manually engaged in the multi-purpose block of connector types A, D, L, and M. The various keys are color-coded, enabling quick visual identification.
hm 2.0 connectors from ept are designed with a pitch of 2 mm. These connectors can easily be lined up without interrupting the 2 mm pitch at the interfaces. This arrangement offers advantages especially in the design of the printed circuit board, as there is no loss of space within individual connector modules.
Modules A, D, L, and M are equipped with a multi-purpose block. This accommodates the coding keys provided in accordance with the standard. The molded guides ensure proper orientation of the male and female connectors to each other as well as anti-twist protection before contact is made. The coding keys are connected and released again using a simple plug and pull tool.
ept offers four different lengths for the hm 2.0 male connectors for the connection side and three lengths for the mating side. The different termination lengths are necessary to connect/disconnect certain signal or ground lines first when plugging or unplugging assemblies. The long 11.25-mm connections are mainly needed for the shield rows z and f.
The insulator materials are fitted with chamfers at the ends for better orientation and to prevent the connectors from twisting. These chamfers ensure precise positioning on the circuit board and provide the modules the necessary retention force.
Coding of the connectors is essential in a modern bus system to prevent confusion with the circuit boards. The possibility of coding is already specified in IEC 61076-4-101. Coding keys can be manually engaged in the multi-purpose block of connector types A, D, L, and M. The various keys are color-coded, enabling quick visual identification.
hm 2.0 System Modularity
ept hm 2.0 modules offer a number of possibilities to optimize high contact densities, especially in combination with coaxial or fiber optic connections.
It is possible to establish connections of 50 mm, in length using the type A module, in stages of 25 mm up to any total length.
It is generally best to arrange the connectors with a multi-purpose block (types A, M, L) at the beginning of a connector row. The type B module is placed between other modules only.
The 25-mm modules of type C and N are placed at the end of a connector row because of their reverse polarity protection. Correct plugging of modules is ensured by the coding keys in the multi-purpose block and by the type C and N modules.
It is possible to establish connections of 50 mm, in length using the type A module, in stages of 25 mm up to any total length.
It is generally best to arrange the connectors with a multi-purpose block (types A, M, L) at the beginning of a connector row. The type B module is placed between other modules only.
The 25-mm modules of type C and N are placed at the end of a connector row because of their reverse polarity protection. Correct plugging of modules is ensured by the coding keys in the multi-purpose block and by the type C and N modules.
hm 2.0 for Highspeed Applications
It is possible to realize high-speed applications with hm 2.0 connectors from ept. It was possible to attain data transfer rates of up to 3.125 Gbps under the framework conditions described below.
- Two hm 2.0 connector pairs from ept
- Two standard FR4 PCBs at a thickness of 1.6 mm and a strip line length of 115 mm
- One standard FR4 backplane at a thickness of 4.4 mm and a strip line length of 400 mm
- Special attention is paid to connection interruptions, the stub effect, the skin effect, and dielectric losses in the application design
We would be happy to provide you with more details and the corresponding technical literature on highspeed applications using hm 2.0 connectors. Get in touch with us.
