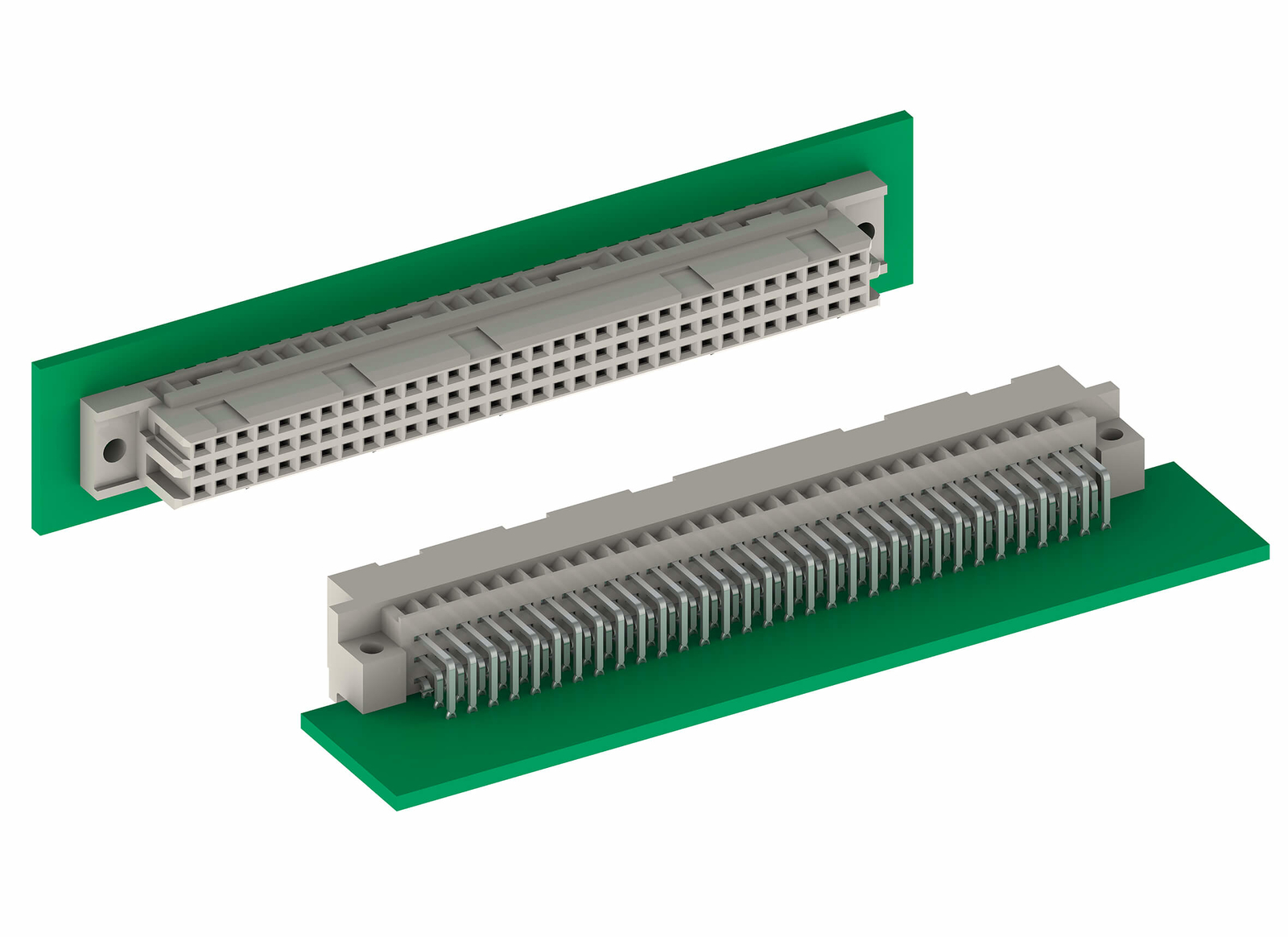

Highly Diverse and Time Proven: DIN 41612 / IEC 60603-2 Connector

The variety of different types and termination technologies (press-fit, dip soldering, manual soldering, wrapping, crimping, THR) for DIN connectors cover a wide range of applications.
DIN Anwendung C ML C FL

Features

  • Various termination technologies possible
  • Leading and lagging contacts
  • Pre-centering
  • Variety of termination lengths
  • A range of accessories, such as shrouds, board locks, coding keys
  • Quick lock switch fastener for daisy chaining
  • Board locks and codes provide developers and users with additional safety and a wide range of possible applications.

Applications

  • Backplane daughter card, 19-inch technology (VME)
  • Board-to-board, parallel, or stacked
  • High-power
Female straight

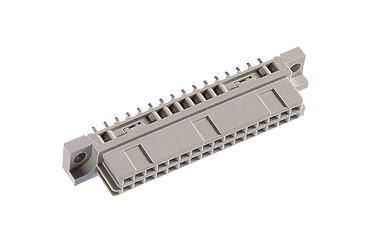

DIN 41612 Female straight, type B Part No. 102-40024

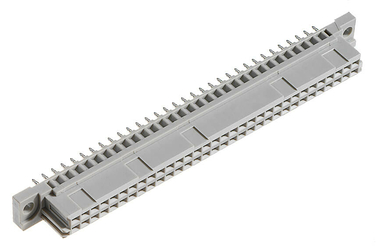

DIN B FL Foto
Termination length 2.5 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40024 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 102-40024TH

DIN B FL Foto
Termination length 2.5 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40024TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 102-40026

DIN B FL Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40026 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 102-40044

DIN B FL Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40044 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 102-40074

DIN B FL Foto
Termination length 5.5 mm, 64 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 102-40074 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 102-63024-xx

DIN B FL Foto
Termination length 3.2 mm / 4.6 mm, 32 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 102-63024-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 102-65025-xx

DIN B FL Foto
Termination length 13 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 102-65025-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-40064-01

DIN B FL Foto
Termination length 3.4 mm, 64 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 302-40064-01 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-40064-01TH

DIN B FL Foto
Termination length 3.4 mm, 64 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 302-40064-01TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyTHTR
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-40064-02

DIN B FL Foto
Termination length 4.6 mm, 64 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 302-40064-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 102-65026-xx

DIN B FL Foto
Termination length 17 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 102-65026-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-40064-02TH

DIN B FL Foto
Termination length 4.6 mm, 64 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 302-40064-02TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyTHTR
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-40064-05

DIN B FL Foto
Termination length 2.5 mm, 64 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 302-40064-05 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-40064-05TH

DIN B FL Foto
Termination length 2.5 mm, 64 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 302-40064-05TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-40065-03

DIN B FL Foto
Termination length 13 mm, termination side Sn plated, 64 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B Part No. 302-40065-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-63014-02

DIN B FL Foto
Termination length 4.6 mm, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 302-63014-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-63064-02

DIN B FL Foto
Termination length 4.6 mm, 64 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 302-63064-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-65015-03

DIN B FL Foto
Termination length 13 mm, with plug-in zone in performance level 2, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 302-65015-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-65016-04

DIN B FL Foto
Termination length 17 mm, with plug-in zone in performance level 2, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 302-65016-04 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-65065-03

DIN B FL Foto
Termination length 13 mm, with plug-in zone in performance level 2, 64 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 302-65065-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B Part No. 302-65066-04

DIN B FL Foto
Termination length 17 mm, with plug-in zone in performance level 2, 64 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B Part No. 302-65066-04 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-69004-xx

DIN B2 FL Foto
Termination length 3.2 mm / 4.6 mm, 16 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-69004-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-69064-xx

DIN B2 FL Foto
Termination length 3.2 mm / 4.6 mm, 32 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-69064-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-79006-xx

DIN B2 FL Foto
Termination length 13 mm, with plug-in zone in performance level 2, 16 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-79006-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-79066-xx

DIN B2 FL Foto
Termination length 13 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-79066-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-79106-xx

DIN B2 FL Foto
Termination length 17 mm, with plug-in zone in performance level 2, 16 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-79106-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90004

DIN B2 FL Foto
Termination length 2.5 mm, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90004 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90004TH

DIN B2 FL Foto
Termination length 2.5 mm, 16 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90004TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90005

DIN B2 FL Foto
Termination length 4 mm, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90005 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-79166-xx

DIN B2 FL Foto
Termination length 17 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-79166-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90005TH

DIN B2 FL Foto
Termination length 4 mm, 16 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90005TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyTHTR
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90006

DIN B2 FL Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90006 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90025

DIN B2 FL Foto
Termination length 5.5 mm, 16 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90064

DIN B2 FL Foto
Termination length 2.5 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90064TH

DIN B2 FL Foto
Termination length 2.5 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90064TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90065

DIN B2 FL Foto
Termination length 4 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90065TH

DIN B2 FL Foto
Termination length 4 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90065TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90066

DIN B2 FL Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90066 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/2 Part No. 102-90075

DIN B2 FL Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/2 Part No. 102-90075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

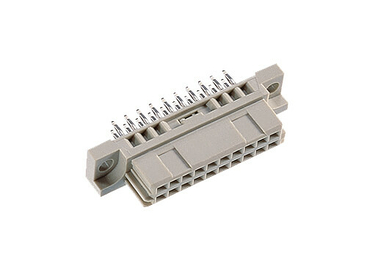

DIN 41612 Female straight, type B/3 Part No. 102-68014-xx

DIN B3 FL Foto
Termination length 3.2 mm / 4.6 mm, 20 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-68014-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-78016-xx

DIN B3 FL Foto
Termination length 13 mm, with plug-in zone in performance level 2, 20 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, press-fit, Performance level 2
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-78016-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologypress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-78116-xx

DIN B3 FL Foto
Termination length 17 mm, with plug-in zone in performance level 2, 20 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, press-fit, Performance level 2
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-78116-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologypress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-80004

DIN B3 FL Foto
Termination length 2.5 mm, 10 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80004 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-80005

DIN B3 FL Foto
Termination length 4 mm, 10 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80005 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-80006

DIN B3 FL Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 10 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80006 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 9 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-80025

DIN B3 FL Foto
Termination length 5.5 mm, 10 contacts, hand solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts10
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 9 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-80064

DIN B3 FL Foto
Termination length 2.5 mm, 20 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-80065

DIN B3 FL Foto
Termination length 4 mm, 20 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-80066

DIN B3 FL Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 20 contacts, solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80066 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type B/3 Part No. 102-80075

DIN B3 FL Foto
Termination length 5.5 mm, 20 contacts, hand solder, performance level 2
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type B/3 Part No. 102-80075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

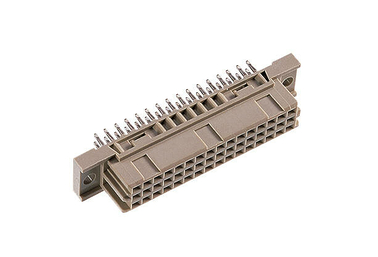

DIN 41612 Female straight, type C Part No. 104-40014

DIN C FL Einpress Foto
Termination length 2.5 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40014 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-40016

DIN C FL Einpress Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40016 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-40044

DIN C FL Einpress Foto
Termination length 2.5 mm, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40044 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-40046

DIN C FL Einpress Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40046 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-40075

DIN C FL Einpress Foto
Termination length 5.5/11 mm, 96 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-40115

DIN C FL Einpress Foto
Termination length 5.5 mm, 64 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 104-40115 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40054-01

DIN C FL Einpress Foto
Termination length 3.4 mm, 64 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40054-01 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40054-01TH

DIN C FL Einpress Foto
Termination length 3.4 mm, 64 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40054-01TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyTHTR
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40054-02

DIN C FL Einpress Foto
Termination length 4.6 mm, 64 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40054-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-60014-xx

DIN C FL Einpress Foto
Termination length 3.2 mm / 4.6 mm, 32 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-60014-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-60044-xx

DIN C FL Einpress Foto
Termination length 3.2 mm / 4.6 mm, 48 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-60044-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-65015-xx

DIN C FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-65015-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-65016-xx

DIN C FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 32 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-65016-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-65045-xx

DIN C FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 48 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-65045-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 104-65046-xx

DIN C FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 48 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 104-65046-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40054-02TH

DIN C FL Einpress Foto
Termination length 4.6 mm, 64 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40054-02TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyTHTR
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40054-05

DIN C FL Einpress Foto
Termination length 2.5 mm, 64 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40054-05 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40054-05TH

DIN C FL Einpress Foto
Termination length 2.5 mm, 64 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40054-05TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40055-03

DIN C FL Einpress Foto
Termination length 13 mm, termination side Sn plated, 64 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40055-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40064-01

DIN C FL Einpress Foto
Termination length 3.4 mm, 96 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40064-01 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination Technologysolder
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40064-01TH

DIN C FL Einpress Foto
Termination length 3.4 mm, 96 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40064-01TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination TechnologyTHTR
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40064-02

DIN C FL Einpress Foto
Termination length 4.6 mm, 96 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40064-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40064-02TH

DIN C FL Einpress Foto
Termination length 4.6 mm, 96 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40064-02TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination TechnologyTHTR
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40064-05

DIN C FL Einpress Foto
Termination length 2.5 mm, 96 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40064-05 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40064-05TH

DIN C FL Einpress Foto
Termination length 2.5 mm, 96 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40064-05TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-40065-03

DIN C FL Einpress Foto
Termination length 13 mm, termination side Sn plated, 96 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C Part No. 304-40065-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-60054-02

DIN C FL Einpress Foto
Termination length 4.6 mm, 64 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 304-60054-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-60064-02

DIN C FL Einpress Foto
Termination length 4.6 mm, 96 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 304-60064-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-65055-03

DIN C FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 64 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 304-65055-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-65056-04

DIN C FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 64 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 304-65056-04 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts64
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-65065-03

DIN C FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 96 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 304-65065-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C Part No. 304-65066-04

DIN C FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 96 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C Part No. 304-65066-04 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts96
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 90 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 104-69004-xx

DIN C2 FL Einpress Foto
Termination length 3.2 mm / 4.6 mm, 16 contacts, PCB 1.5 to 2.0 mm: xx = 01 (termination length = 3.2 mm)_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03 (termination length = 4.6 mm), Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-69004-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length3.2 mm / 4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 104-79006-xx

DIN C2 FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 16 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-79006-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 104-79106-xx

DIN C2 FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 16 contacts, PCB 1.5 to 2.0 mm: xx =  01_PCB 2.0 to 2.8 mm: xx = 02 (on request)_PCB > 2.8 mm: xx = 03, Press-fit, Performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-79106-xx - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 104-90004

DIN C2 FL Einpress Foto
Termination length 2.5 mm, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90004 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 104-90006

DIN C2 FL Einpress Foto
Termination length 13 mm, termination side Sn plated for wire wrap, 16 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90006 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 104-90025

DIN C2 FL Einpress Foto
Termination length 5.5 mm, 16 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts16
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 15 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 104-90035

DIN C2 FL Einpress Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90035 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 104-90075

DIN C2 FL Einpress Foto
Termination length 5.5/11 mm, 48 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 104-90075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-69014-02

DIN C2 FL Einpress Foto
Termination length 4.6 mm, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-69014-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-69064-02

DIN C2 FL Einpress Foto
Termination length 4.6 mm, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-69064-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-79016-03

DIN C2 FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-79016-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-79066-03

DIN C2 FL Einpress Foto
Termination length 13 mm, with plug-in zone in performance level 2, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-79066-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-79116-04

DIN C2 FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-79116-04 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-79166-04

DIN C2 FL Einpress Foto
Termination length 17 mm, with plug-in zone in performance level 2, 48 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-79166-04 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90014-01

DIN C2 FL Einpress Foto
Termination length 3.4 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90014-01 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90014-01TH

DIN C2 FL Einpress Foto
Termination length 3.4 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90014-01TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90014-02

DIN C2 FL Einpress Foto
Termination length 4.6 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90014-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90014-02TH

DIN C2 FL Einpress Foto
Termination length 4.6 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90014-02TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90014-05

DIN C2 FL Einpress Foto
Termination length 2.5 mm, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90014-05 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90014-05TH

DIN C2 FL Einpress Foto
Termination length 2.5 mm, 32 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90014-05TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90016-03

DIN C2 FL Einpress Foto
Termination length 13 mm, termination side Sn plated, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90016-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 30 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90064-01

DIN C2 FL Einpress Foto
Termination length 3.4 mm, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90064-01 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90064-01TH

DIN C2 FL Einpress Foto
Termination length 3.4 mm, 48 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90064-01TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyTHTR
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90064-02

DIN C2 FL Einpress Foto
Termination length 4.6 mm, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90064-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90064-02TH

DIN C2 FL Einpress Foto
Termination length 4.6 mm, 48 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90064-02TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyTHTR
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90064-05

DIN C2 FL Einpress Foto
Termination length 2.5 mm, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90064-05 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90064-05TH

DIN C2 FL Einpress Foto
Termination length 2.5 mm, 48 contacts, THTR, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90064-05TH - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination TechnologyTHTR
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPA glass filled UL 94 V-0
CTI value
IEC 60112
600
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperature260°C per J-STD-020
MSL1

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/2 Part No. 304-90066-03

DIN C2 FL Einpress Foto
Termination length 13 mm, termination side Sn plated, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/2 Part No. 304-90066-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 45 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

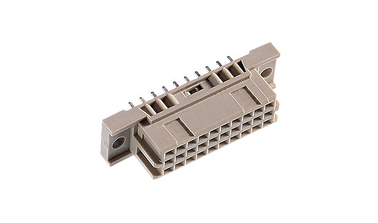

DIN 41612 Female straight, type C/3 Part No. 104-80035

DIN C3 FL Lot Foto
Termination length 5.5/11 mm, 20 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 104-80035 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 104-80075

DIN C3 FL Lot Foto
Termination length 5.5/11 mm, 30 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 104-80075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-68004-02

DIN C3 FL Lot Foto
Termination length 4.6 mm, 20 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-68004-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-68014-02

DIN C3 FL Lot Foto
Termination length 4.6 mm, 30 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-68014-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-78006-03

DIN C3 FL Lot Foto
Termination length 13 mm, with plug-in zone in performance level 2, 20 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-78006-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-78016-03

DIN C3 FL Lot Foto
Termination length 13 mm, with plug-in zone in performance level 2, 30 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-78016-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination TechnologyPress-fit
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-78106-04

DIN C3 FL Lot Foto
Termination length 17 mm, with plug-in zone in performance level 2, 20 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-78106-04 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-78116-04

DIN C3 FL Lot Foto
Termination length 17 mm, with plug-in zone in performance level 2, 30 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-78116-04 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination TechnologyPress-fit
Termination Length17 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-80014-01

DIN C3 FL Lot Foto
Termination length 3.4 mm, 20 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-80014-01 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-80014-02

DIN C3 FL Lot Foto
Termination length 4.6 mm, 20 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-80014-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-80014-05

DIN C3 FL Lot Foto
Termination length 2.5 mm, 20 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-80014-05 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-80016-03

DIN C3 FL Lot Foto
Termination length 13 mm, termination side Sn plated, 20 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-80016-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts20
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 18 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-80064-01

DIN C3 FL Lot Foto
Termination length 3.4 mm, 30 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-80064-01 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination Technologysolder
Termination Length3.4 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-80064-02

DIN C3 FL Lot Foto
Termination length 4.6 mm, 30 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-80064-02 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-80064-05

DIN C3 FL Lot Foto
Termination length 2.5 mm, 30 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-80064-05 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type C/3 Part No. 304-80066-03

DIN C3 FL Lot Foto
Termination length 13 mm, termination side Sn plated, 30 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Female straight, type C/3 Part No. 304-80066-03 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts30
Termination Technologysolder
Termination Length13 mm
Board-to-Board Distance16.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch2.54 mm
Mating Force< 28 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current1.5 A
Contact Resistance<20 mΩ
Clearance and Creepage≥ 1.2 mm
Insulation Resistance>106
Test Voltage1000 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

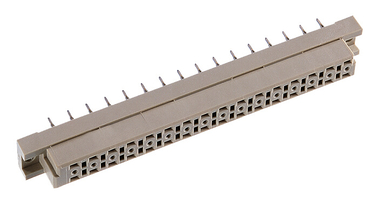

DIN 41612 Female straight, type D Part No. 106-40064

DIN D FL Einpress Foto
Termination length 4 mm, termination 1 x 1, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type D Part No. 106-40065

DIN D FL Einpress Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type D Part No. 106-40066

DIN D FL Einpress Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40066 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type D Part No. 106-40075

DIN D FL Einpress Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40075 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type D Part No. 106-40084

DIN D FL Einpress Foto
Termination length 2.5 mm, termination 0.6 x 0.6, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-40084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length2.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type D Part No. 106-60064

DIN D FL Einpress Foto
Termination length 6 mm, termination 1 x 1, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-60064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type D Part No. 106-60065

DIN D FL Einpress Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-60065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type D Part No. 106-60084

DIN D FL Einpress Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, Press-fit, performance level 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Female straight, type D Part No. 106-60084 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination TechnologyPress-fit
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 40 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40014

DIN E FL Lot Foto
Termination length 4 mm, termination 1 x 1, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40014 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40015

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40015 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40024

DIN E FL Lot Foto
Termination length 4 mm, termination 1 x 1, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40024 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40025

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40025 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40034

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40034 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40036

DIN E FL Lot Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40036 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40044

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 32 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40044 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40046

DIN E FL Lot Foto
Termination length 5.5 mm, 32 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40046 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts32
Termination Technologysolder
Termination Length5.5 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 50 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40064

DIN E FL Lot Foto
Termination length 4 mm, termination 1 x 1, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40064 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length4 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40065

DIN E FL Lot Foto
Termination length 20 mm, termination 1 x 1, termination side Sn plated for wire wrap, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40065 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length20 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40074

DIN E FL Lot Foto
Termination length 4.6 mm, termination 0.6 x 0.6, 48 contacts, solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40074 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length4.6 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C

Material

Insulator MaterialPBT glass filled UL 94 V-0
CTI value
IEC 60112
200
Contact MaterialCopper alloy

Mechanical

Pitch5.08 mm
Mating Force< 60 N
Separating Force per Pin> 0.15 N
Durability400  mating cycles

Electrical

Operational Current5.6 A
Contact Resistance<15 mΩ
Clearance and Creepage≥ 3.0 mm
Insulation Resistance>106
Test Voltage1500 V

Processing

Soldering Temperatureto 260°C

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant

DIN 41612 Female straight, type E Part No. 108-40076

DIN E FL Lot Foto
Termination length 5.5/11 mm, 48 contacts, hand solder, performance level 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Female straight, type E Part No. 108-40076 - Technical data

Basics

SpecificationIEC 60603-2 (DIN 41612)
Performance Level2
No. of Contacts48
Termination Technologysolder
Termination Length5.5 mm / 11 mm
Board-to-Board Distance17.85 mm
Operating Temperature Range-55°C to +125°C
