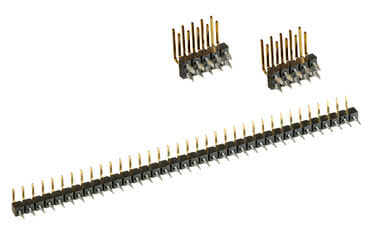

Varpol Pin Headers and Sockets

High Quality, Adaptable, and Robust VarPol male and female connectors from ept offer a plethora of possibilities for connecting circuit boards. One or two rows, variable pin counts, different termination lengths, straight or angled – the choice is yours! The product also allows for seamlessly connecting sockets. In addition, Tcom press®, our tried and proven press-fit zone, allows you to eliminate the soldering process and greatly increase connection reliability.

Features

A large selection of contact lengths and termination lengths
A choice of performance levels: 50 and 250 mating cycles
Sockets can be joined end-to-end
Simple and inexpensive processing
Tcom press® press-fit zone

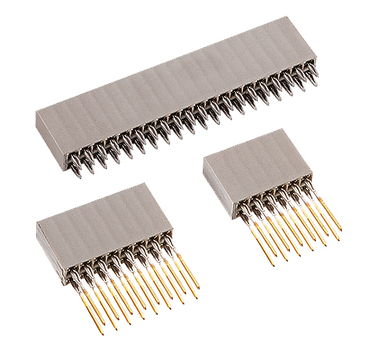

Varpol female connectors also in soldering technology
Angled and straight, one and two rows

Applications

Board-to-board distances ranging from 11.45 mm to 35.45 mm
Press-fit technology eliminates the soldering process

Varpol: Overview

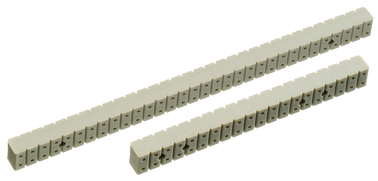

Facts at a glance Applications Varpol Products Features Stacking with Varpol: Developer view FAQ

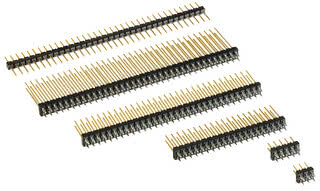

Straight pin header

VarPol Straight pin header 1-row Part No. 971-nn009-b1

length mating face (Y) = 6.7 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn009-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	13.95 mm - 17.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn010-b1

length mating face (Y) = 5.2 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn010-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	13.95 mm - 15.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn011-b1

length mating face (Y) = 8.0 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn011-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	14.45 mm - 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn012-b1

length mating face (Y) = 10.2 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn012-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	16.65 mm - 20.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn013-b1

length mating face (Y) = 13.0 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn013-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	19.45 mm - 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn018-b1

length mating face (Y) = 17.5 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn018-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	23.95 mm - 27.95 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn019-b1

length mating face (Y) = 25.0 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn019-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	31.45 mm - 35.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn020-ba

length mating face (Y) = 5.2 mm, Press-fit, termination length 6.5 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn020-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	11.45 mm - 13 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn021-ba

length mating face (Y) = 8.0 mm, Press-fit, termination length 6.5 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn021-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	14.45 mm - 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn022-ba

length mating face (Y) = 10.2 mm, Press-fit, termination length 6.5 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn022-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	16.65 mm - 20.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn023-ba

length mating face (Y) = 13.0 mm, Press-fit, termination length 6.5 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn023-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	19.45 mm - 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn026-b1

length mating face (Y) = 15.7 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn026-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	22.15 mm - 26.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn029-ba

length mating face (Y) = 25.0 mm, Press-fit, termination length 6.5 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn029-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	31.45 mm - 35.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn039-ba

length mating face (Y) = 6.7 mm, Press-fit, termination length 6.5 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn039-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	13.95 mm - 17.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn050-ba

length mating face (Y) = 5.2 mm, Press-fit, termination length 11 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn050-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	11 mm
Board-to-Board Distance	13.95 mm - 15.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn051-ba

length mating face (Y) = 8.0 mm, Press-fit, termination length 11 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn051-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	11 mm
Board-to-Board Distance	14.45 mm - 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn053-ba

length mating face (Y) = 13.0 mm, Press-fit, termination length 11 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn053-ba - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	11 mm
Board-to-Board Distance	19.45 mm - 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn006-b1

length mating face (Y) = 16.6 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn006-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	23.05 mm - 27.05 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn009-b1

length mating face (Y) = 6.7 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn009-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	13.95 mm - 17.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn010-b1

length mating face (Y) = 5.2 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn010-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	13.95 mm - 15.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn011-b1

length mating face (Y) = 8.0 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn011-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	14.45 mm - 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn012-b1

length mating face (Y) = 10.2 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn012-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	16.65 mm - 20.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn013-b1

length mating face (Y) = 13.0 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn013-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	19.45 mm - 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn018-b1

length mating face (Y) = 17.5 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn018-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	23.95 mm - 27.95 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn019-b1

length mating face (Y) = 25.0 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn019-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	31.45 mm - 35.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn020-ba

length mating face (Y) = 5.2 mm, Press-fit, termination length 6.5 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn020-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	11.45 mm - 13 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn021-ba

length mating face (Y) = 8.0 mm, Press-fit, termination length 6.5 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn021-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	14.45 mm - 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn022-ba

length mating face (Y) = 10.2 mm, Press-fit, termination length 6.5 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn022-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	16.65 mm - 20.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn023-ba

length mating face (Y) = 13.0 mm, Press-fit, termination length 6.5 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn023-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	19.45 mm - 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn026-b1

length mating face (Y) = 15.7 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn026-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	22.15 mm - 26.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn029-ba

length mating face (Y) = 25.0 mm, Press-fit, termination length 6.5 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn029-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	31.45 mm - 35.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn039-ba

length mating face (Y) = 6.7 mm, Press-fit, termination length 6.5 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn039-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	6.5 mm
Board-to-Board Distance	13.95 mm - 17.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn050-ba

length mating face (Y) = 5.2 mm, Press-fit, termination length 11 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn050-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	11 mm
Board-to-Board Distance	13.95 mm - 15.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn051-ba

length mating face (Y) = 8.0 mm, Press-fit, termination length 11 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn051-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	11 mm
Board-to-Board Distance	14.45 mm - 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 0.9 N
Operational Voltage	min 0.6 N
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn053-ba

length mating face (Y) = 13.0 mm, Press-fit, termination length 11 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, b in part number defines Performance Level of mating side; a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn053-ba - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	11 mm
Board-to-Board Distance	19.45 mm - 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 0.9 N
Operational Voltage	min 0.6 N
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 1-row Part No. 971-nn006-b1

length mating face (Y) = 16.6 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row, b in part number defines Performance Level of mating side

Parallel

Press-fit

show more product details

VarPol Straight pin header 1-row Part No. 971-nn006-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	23.05 mm - 27.05 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn090-9a

length mating face (Y) = 0.0 mm, Press-fit, termination length 6,5 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn090-9a - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	6,5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 0.9 N
Operational Voltage	min 0.6 N
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight pin header 2-row Part No. 972-nn091-9a

length mating face (Y) = 0.0 mm, Press-fit, termination length 9 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row, a defines Performance Level of termination side

Parallel

Press-fit

show more product details

VarPol Straight pin header 2-row Part No. 972-nn091-9a - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 0.9 N
Operational Voltage	min 0.6 N
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Female connectors

VarPol Female connector 1-row Part No. 961-40nn2-03

Performance Level 3, solder, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol Female connector 1-row Part No. 961-40nn2-03 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 36
Termination Technology	solder
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-40nn2-12

Performance Level 3, solder, termination length 12.2 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol Female connector 1-row Part No. 961-40nn2-12 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 36
Termination Technology	solder
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-40nn6-03

Performance Level 2, solder, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol Female connector 1-row Part No. 961-40nn6-03 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 36
Termination Technology	solder
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-40nn6-12

Performance Level 2, solder, termination length 12.2 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol Female connector 1-row Part No. 961-40nn6-12 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 36
Termination Technology	solder
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-60nn2-03

Performance Level 3, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 1-row Part No. 961-60nn2-03 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-60nn2-07

Performance Level 3, Press-fit, termination length 8.05 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 1-row Part No. 961-60nn2-07 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	8.05 mm
Board-to-Board Distance	11.45 mm - 14.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-60nn2-12

Performance Level 3, Press-fit, termination length 12.2 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 1-row Part No. 961-60nn2-12 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	12.2 mm
Board-to-Board Distance	14.55 mm - 18.55 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-60nn2-17

Performance Level 3, Press-fit, termination length 17 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 1-row Part No. 961-60nn2-17 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	17 mm
Board-to-Board Distance	19.35 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-60nn6-03

Performance Level 2, Press-fit, termination length 3.4 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 1-row Part No. 961-60nn6-03 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-60nn6-07

Performance Level 2, Press-fit, termination length 8.05 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 1-row Part No. 961-60nn6-07 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	8.05 mm
Board-to-Board Distance	11.45 mm - 14.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-60nn6-12

Performance Level 2, Press-fit, termination length 12.2 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 1-row Part No. 961-60nn6-12 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	12.2 mm
Board-to-Board Distance	14.55 mm - 18.55 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 1-row Part No. 961-60nn6-17

Performance Level 2, Press-fit, termination length 17 mm, 2 - 36 contacts (nn in part number = pins / row), 1-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 1-row Part No. 961-60nn6-17 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	17 mm
Board-to-Board Distance	19.35 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-40nn2-03

Performance Level 3, solder, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol Female connector 2-row Part No. 962-40nn2-03 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 108
Termination Technology	solder
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-40nn2-12

Performance Level 3, solder, termination length 12.2 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol Female connector 2-row Part No. 962-40nn2-12 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 108
Termination Technology	solder
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-40nn6-03

Performance Level 2, solder, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol Female connector 2-row Part No. 962-40nn6-03 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 108
Termination Technology	solder
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-40nn6-12

Performance Level 2, solder, termination length 12.2 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol Female connector 2-row Part No. 962-40nn6-12 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 108
Termination Technology	solder
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-60nn2-03

Performance Level 3, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 2-row Part No. 962-60nn2-03 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-60nn2-07

Performance Level 3, Press-fit, termination length 8.05 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 2-row Part No. 962-60nn2-07 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	8.05 mm
Board-to-Board Distance	11.45 mm - 14.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-60nn2-12

Performance Level 3, Press-fit, termination length 12.2 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 2-row Part No. 962-60nn2-12 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	12.2 mm
Board-to-Board Distance	14.55 mm - 18.55 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-60nn2-17

Performance Level 3, Press-fit, termination length 17 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 2-row Part No. 962-60nn2-17 - Technical data

Basics

Performance Level	3
No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	17 mm
Board-to-Board Distance	19.35 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-60nn6-03

Performance Level 2, Press-fit, termination length 3.4 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 2-row Part No. 962-60nn6-03 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-60nn6-07

Performance Level 2, Press-fit, termination length 8.05 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 2-row Part No. 962-60nn6-07 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	8.05 mm
Board-to-Board Distance	11.45 mm - 14.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-60nn6-12

Performance Level 2, Press-fit, termination length 12.2 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 2-row Part No. 962-60nn6-12 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	12.2 mm
Board-to-Board Distance	14.55 mm - 18.55 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Female connector 2-row Part No. 962-60nn6-17

Performance Level 2, Press-fit, termination length 17 mm, 2 - 108 contacts (nn in part number = pins / row), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol Female connector 2-row Part No. 962-60nn6-17 - Technical data

Basics

Performance Level	2
No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	17 mm
Board-to-Board Distance	19.35 mm - 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Angled pin header

VarPol Angled pin header 1-row Part No. 981-nn010-b1

length mating side (Y) = 2.8 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts, 1-row, b in part number defines Performance Level of mating side

Perpendicular

Press-fit

show more product details

VarPol Angled pin header 1-row Part No. 981-nn010-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Angled pin header 1-row Part No. 981-nn011-b1

length mating side (Y) = 5.6 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts, 1-row, b in part number defines Performance Level of mating side

Perpendicular

Press-fit

show more product details

VarPol Angled pin header 1-row Part No. 981-nn011-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Angled pin header 1-row Part No. 981-nn012-b1

length mating side (Y) = 7.8 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts, 1-row, b in part number defines Performance Level of mating side

Perpendicular

Press-fit

show more product details

VarPol Angled pin header 1-row Part No. 981-nn012-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Angled pin header 1-row Part No. 981-nn013-b1

length mating side (Y) = 10.6 mm, Press-fit, termination length 3.4 mm, 2 - 36 contacts, 1-row, b in part number defines Performance Level of mating side

Perpendicular

Press-fit

show more product details

VarPol Angled pin header 1-row Part No. 981-nn013-b1 - Technical data

Basics

No. of Contacts	2 - 36
Termination Technology	Press-fit
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Angled pin header 2-row Part No. 982-nn010-b1

length mating side (Y) = 2.8 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts, 2-row, b in part number defines Performance Level of mating side

Perpendicular

Press-fit

show more product details

VarPol Angled pin header 2-row Part No. 982-nn010-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Angled pin header 2-row Part No. 982-nn011-b1

length mating side (Y) = 5.6 mm, Press-fit, termination length 3.4 mm, 2 - 108 contacts, 2-row, b in part number defines Performance Level of mating side

Perpendicular

Press-fit

show more product details

VarPol Angled pin header 2-row Part No. 982-nn011-b1 - Technical data

Basics

No. of Contacts	2 - 108
Termination Technology	Press-fit
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
Contact Material	Copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	min 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	< 20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Accessories

VarPol Guiding block Part No. 962-17nn2/1

for 2 - 108 contacts, guiding block for Varpol Female connectors

show more product details

VarPol Guiding block Part No. 962-17nn2/1 - Technical data

Basics

No. of Contacts	20
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.54 mm

Approval / Compliance

Environment	RoHS compliant

Features:

VarPol male and female connectors offer endless possibilities. They are available in a one or two-row design and the number of pins can be customized from 2 to 108 contacts. All connectors are carefully designed, allowing for seamless connection. A wide range of termination lengths of up to 25 mm make it possible to stack circuit boards with board-to-board distances from 11.45 mm to 35.45 mm. Furthermore, the pin headers are also available in a right-angle design that allows for perpendicular connections in addition to parallel ones. Finally, all VarPol products come with a choice of two performance levels that guarantee a durability of either 50 or 250 mating cycles.

VarPol Anwendung gerade — Application straight

VarPol Anwendung gewinkelt — Application angled

VarPol Federleiste — VarPol Female Connector
detail overview

VarPol Stiftleiste — VarPol Pin header
detail overview

connection contacts
from 5.2 mm to 25 mm

A further advantage is how easy and inexpensive it is to process the press-fit technology. The male and female connectors feature the tried and tested Tcom press® press-fit system, which allows them to be pressed without soldering. Press-fitting results in a gas-tight and vibration-resistant connection, which in turn allows you to connect VarPol products to optimal circuit-board connectors for reliable mechanical and electrical connections even in harsh environments. ept offers the right tools that make it remarkably easy to carry out the press-fitting reliably for the male and female connectors. Additional guiding blocks support stable contact management when dealing with larger board-to-board distances and facilitate optimal stability during press-fitting.

Stacking with Varpol:

VarPol male and female connectors based on the press-fit system make it possible to connect circuit boards with one another in parallel.

Board-to-board distances ranging from 11.45 mm up to 35.45 mm using various termination lengths of the multi-pin connector
One or two rows
Number of contacts is freely selectable (no upper limit, as the connectors can be arranged next to one another without the loss of a pitch)
Rear mating zone as an option
Female connector in soldering or press-fit technology

Connecting the connector with the circuit board using press-fit technology ensures a highly robust and resilient connection. High-quality press-fit connections, such as with the Tcom press® from ept, offer demonstrably better contact reliability than soldering connections. The cold welding between the contact and the circuit board hole resulting from press-in is highly mechanically stable and of a high electrical quality. It is remarkably easy and reliable to process using the associated processing tools offered by ept.

It is also possible to vertically stack multiple circuit boards, whereby female connectors are used with the corresponding connecting contacts. Board-to-board distances ranging from 11.45 mm up to 19.35 mm can be achieved here. Using a guiding block on the underside of the upper circuit board also supports stable contact management and prevents mismating.

Angled pin headers provide the option to implement right-angled connections with the same level of versatility and reliability, in addition to the parallel connection of circuit boards.

System: VarPol female connector / VarPol male connector

972-nn00-yx | 5.2/6.5mm
difference max. 1.55

972-nn010-yx | 5.2mm
difference max. 1.7

972-nn009-yx | 6.7mm
difference max. 3.2
(preferably use 972-nn010-yx)

972-nn011-yx | 8.0mm
difference max. 4.0

972-nn012-yx | 10.2mm
difference max. 4.0

972-nn013-yx | 13.0mm
difference max. 4.0

972-nn018-yx | 17.5mm
difference max. 4.0

972-nn019-yx | 25.0mm
difference max. 4.0

System: VarPol female connector / VarPol male connector without guide body

962-6xxxx-07| 7.7mm
difference max. 2.95

962-6xxxx-12| 12.2mm
difference max. 1.7
PC/104

962-6xxxx-17| 17.0mm
difference max. 4.0

Developer view:

ept guarantees to its customers the long-term availability of VarPol male and female connectors with a pitch of 2.54 mm. For years, hardware developers have sworn by the product, which allows you to reliably and flexibly connect circuit boards together or connect a cable to a circuit board.

FAQ:

Can individual PCB spacing be realized with the Varpol male and female connectors?Are there guide bodies for the Varpol male and female connectors?Can VarPol male and female ept connectors be lined up?

Can individual PCB spacing be realized with the Varpol male and female connectors?

With the Varpol male and female header, PCB spacing from 11.45 mm to 35.45 mm can be realized.
This might also be of interest to you:

Are there guide bodies for the Varpol male and female connectors?

Varpol guide bodies are available as accessories for pole numbers 2-104.
This could also be of interest to you:

Can VarPol male and female ept connectors be lined up?

ept can ensure seamless line-up capability with Varpol strips.
This might also be of interest to you:

Varpol Male & Female Connectors:

Features

Applications

Varpol: Overview

VarPol Straight pin header 1-row Part No. 971-nn009-b1

VarPol Straight pin header 1-row Part No. 971-nn010-b1

VarPol Straight pin header 1-row Part No. 971-nn011-b1

VarPol Straight pin header 1-row Part No. 971-nn012-b1

VarPol Straight pin header 1-row Part No. 971-nn013-b1

VarPol Straight pin header 1-row Part No. 971-nn018-b1

VarPol Straight pin header 1-row Part No. 971-nn019-b1

VarPol Straight pin header 1-row Part No. 971-nn020-ba

VarPol Straight pin header 1-row Part No. 971-nn021-ba

VarPol Straight pin header 1-row Part No. 971-nn022-ba

VarPol Straight pin header 1-row Part No. 971-nn023-ba

VarPol Straight pin header 1-row Part No. 971-nn026-b1

VarPol Straight pin header 1-row Part No. 971-nn029-ba

VarPol Straight pin header 1-row Part No. 971-nn039-ba

VarPol Straight pin header 1-row Part No. 971-nn050-ba

VarPol Straight pin header 1-row Part No. 971-nn051-ba

VarPol Straight pin header 1-row Part No. 971-nn053-ba

VarPol Straight pin header 2-row Part No. 972-nn006-b1

VarPol Straight pin header 2-row Part No. 972-nn009-b1

VarPol Straight pin header 2-row Part No. 972-nn010-b1

VarPol Straight pin header 2-row Part No. 972-nn011-b1

VarPol Straight pin header 2-row Part No. 972-nn012-b1

VarPol Straight pin header 2-row Part No. 972-nn013-b1

VarPol Straight pin header 2-row Part No. 972-nn018-b1

VarPol Straight pin header 2-row Part No. 972-nn019-b1
