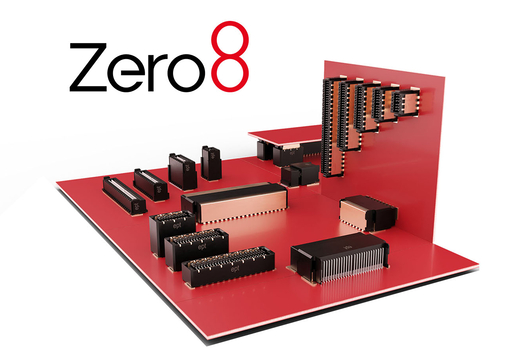

Zero8 stands for robust and scalable SMT connections with 0.8 mm pitch. The EMC shielding protect your signals perfectly against external influences in the industrial environment.

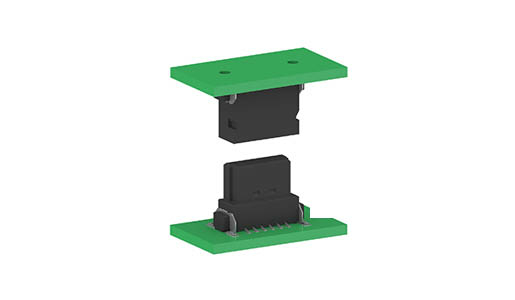

Within the SMT connector family One27 there are available many different connector types including straight and angled versions, as well as flat cable connections. The pin count ranges from 12 to 80 in 1.27 mm pitch.
High speed forms the essence of the EC.8 edge card connector: A component typical of conventional connectors is dispensed with, thus enabling data transmission rates of up to 28 Gbps.
Highly Diverse and Time Proven
The DIN 41612/IEC 60603-2 product series consists of 12 basic types and other supplementary versions with a 2.54-mm or 5.08-mm pitch.The choices range from signal connectors with a current rating of up to 1.5 A to power connectors that can handle up to 5.6 A or even 15 A. The wealth of variants makes it possible to use this family of connectors for a very wide range of applications. Standardization ensures that the connectors are compatible with products from different manufacturers.

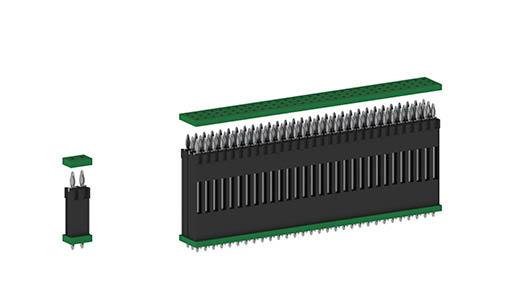

The flexilink jumper is a non-pluggable board-to-board connector that can be used in a variety of situations.
VarPol pin headers and sockets from ept offer a plethora of possibilities for connecting circuit boards.
PC/104 and PC/104-Plus are standardizations for PC-compatible modules that can be connected to build a complex computer system.
Find the right connector for your requirements
