Board-to-Board Connectors for industrial sensors and camera systems

Miniaturization, high-speed data transfer rate, and robustness: Current industrial automation trends pose more and more challenges for sensors and camera systems, as well as for their installed components. Therefore, various criteria must be observed depending on the area of application when choosing the right connectors.

Current Trends in the field of sensor and camera technology

Sensor modular
Modular structure of a sensor
The increasingly popular modularization trend and Industry 4.0 have a significant influence on the field of sensor and camera technology. Sensors are typically designed to be modular these days in order to save on costs related to development and product realization. The housings are standardized, and the sensor’s functionality is defined in the process. Variable PCBs can be combined individually with the help of rectangular or mezzanine connections (Fig. 1). The standardized type offers the user the advantage of uniform handling during assembly and commissioning and when using the sensor.

Furthermore, sensors and cameras for the field of industrial automation are becoming increasingly more intelligent. Which is why additional functions are being integrated into the devices, in addition to their built-in measuring function:

  • Enhanced diagnostic functions for monitoring the durability of the sensor technology and detecting faults
  • Sensor parameterization
  • Remote maintenance
  • Communication from the sensor to the cloud and integration of bus or IO-Link functionalities

Requirements for modern sensors and camera systems

The result of these trends is that modern sensors and camera systems are subject to certain requirements that naturally entail implications for the connectors that are to be installed subsequently:
  • High degree of miniaturization
  • Secure high-speed transmission
  • Good electromagnetic compatibility (EMC)
  • Protection in adverse environmental conditions
  • Pronounced durability

Free whitepaper on sensor technology

Icon Whitepaper
If you would like more information on the requirements of modern sensors and camera systems and how to choose the right connector, we will be happy to send you our free whitepaper:

Request the whitepaper »

Choosing the right connector

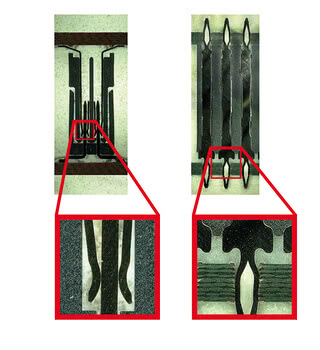

Schliffbild Verguss
Micrograph of two-piece connector vs. one-piece flexilinkb-t-b
Things such as sensors and camera systems, which are used in close proximity to machines, are exposed to particularly harsh environmental influences. While it is true that overmolding the electronics can protect them from these external influences, an additional, appropriate overmold that is compatible with the connection solution is also required. This often poses a problem for standard connectors, as the vulnerable mating area in particular must be protected from the overmolding material, and the commonly used pin and socket contact does not provide the necessary IP protection class for these materials.

Choosing a one-piece connection solution, however, is a way to guarantee the required degree of reliability – in other words, a connector that does not require the conventional mating area. This provides for a durable and robust connection solution whose contact area cannot be penetrated by the overmold material (Fig. 2).

For areas of application that place particular requirements on the robustness of the connector, we also recommend connecting the PCB using double-sided press-fit zones – a process that has been tried and tested a billion times over. A reliable mechanical as well as electrical board-to-board connection is created using just a single part. This means that time-consuming soldering work or expensive cable solutions can be avoided, and costs can be cut by up to 50 percent. By omitting the vulnerable mating area and using press-fit technology at the same time, a connector can withstand shock loads of 50–200 g without contact interruption.

Individual webinars

Do you need detailed knowledge of how to choose suitable connection technology based on your requirements?
Then set up an appointment with us for a free webinar.

We will give you comprehensive insight into the different technologies used in connectors and impart both detailed knowledge as well as helpful insider tips.
Highspeed Kurzbeschreibung 1640x1195px
Technical webinar HighSpeed
learn more
Flexilink Tauziehen Kurzbeschreibung 1640x1195px
Technical webinar Rugged
learn more
Earth Hintergrund Pixabay Kurzbeschreibung 1640x1195px
Webinar Surfaces
learn more

Suitable connectors for sensor and camera systems

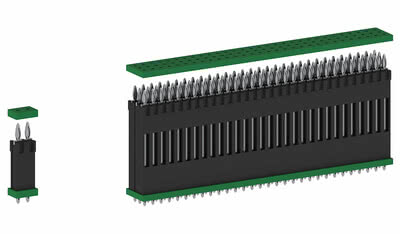

flexilink b t b Anwendung
flexilink b-t-b

Our flexilinkb-t-b connector fulfills these exact durability and reliability requirements and is also available with the tried and tested press-fit technology.

You can find more information on this product here.

Flexilink »
Conversely, both sensors and camera systems become more compact as their level of performance increases, which necessitates high-speed capabilities and miniaturization. Space-saving SMT solutions with a pitch of 0.5 to 0.8 mm are particularly suitable for miniaturized, high-performance applications.

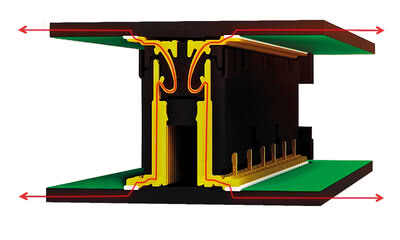

Colibri 16Gbps Kontaktdesign rgb
Optimized high-speed signal of Colibri® Connectors
The optimized, high-speed contact design of the Colibri PCB connector enables fast, interference-free signal transmission starting at 10 Gbps. Its optional shielding also protects against electromagnetic influences.

You can find more information on this product here.

Colibri »
Known requirements for intelligent sensors include robustness, high-speed capability, and good EMC. We also recommend using a product that offers a wide array of different possible applications due to its modularity. Time-consuming release cycles can also be avoided, thereby saving time and money, if all of the connectors in a product range are compatible and can be freely combined with one another. A high degree of scalability enables developers to customize types, stack heights, and pin counts to meet their individual requirements. They can also choose between shielded or unshielded connectors, as well as connectors that are angled or straight.

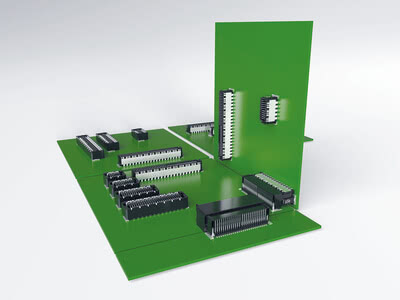

Zero8 Skalierbarkeit
Variability and scalability of Zero8 connectors

The Zero8 series SMT PCB connector reliably connects PCBs with data transfer rates of up to 16 Gbps and meets all of the requirements mentioned above.

You can find more information on this product here.

Zero8 »
